40kw 50kva Generator Head Electric Alternator Single Double Bearing

Place of Origin Wuxi, China
Brand Name Power Friend
Certification ISO, CE, Saso
Model Number UP224F
Minimum Order Quantity 5
Price negotiable
Packaging Details Plywooden box
Delivery Time 15 days after advance payment
Supply Ability 1000pcs/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power(Prime/Standby) 40kw 50kva Frequency 50/60hz
AVR Brushless Bearing Single/Double
Copper 100% Copper Protection IP 22 Or IP23
Insulation Class F/H Warranty One Year Or 1000hrs
Voltage 190-454v
High Light

generator alternator

,

stamford alternators

Leave a Message
Product Description

40kw 50kva electric generator head brushless alternator with AVR



Alternator Model  UP224F
Rated Power 40kw  50kva
Alternator Type A.C. Synchronous
Rated Voltage 220-240V
Rated Frequency 50HZ
Rated speed 1500 RPM
Voltage regulation mode Auto
Alternator voltage regulation ±0.5%
Exciting mode Brushless self exciting
Power factor 0.8 (lagging)
Phase & wires 3 phase 12 wires
Rated currency 230.9A
Efficiency 0.923
Insulation class H
Protection class IP23
Single load step to NFPA110 100%
Standards IEC34-1
Max. Ambient Temperature 40℃
Min. Ambient Temperature - 20℃
Max. altitude 1000m
Weight 500kg



AC Synchronous brushless alternator



1,Advanced AVR :SX460 &SX440

2,H class insulation ensure the generator running in dreadful conditions

3,The 2/3 pitch design avoids excessive neutral currents

4,You can reconnect 12 ends of the terminals to meet other voltage

5,Single bearing and double bearing ,single phase and three phases

6,Standard IP23



Option and Accessory



1,Wingings temp protect thermistor and relay

2,PMG

3,MX321 or MX341

4,Transformer for droop during paralleling

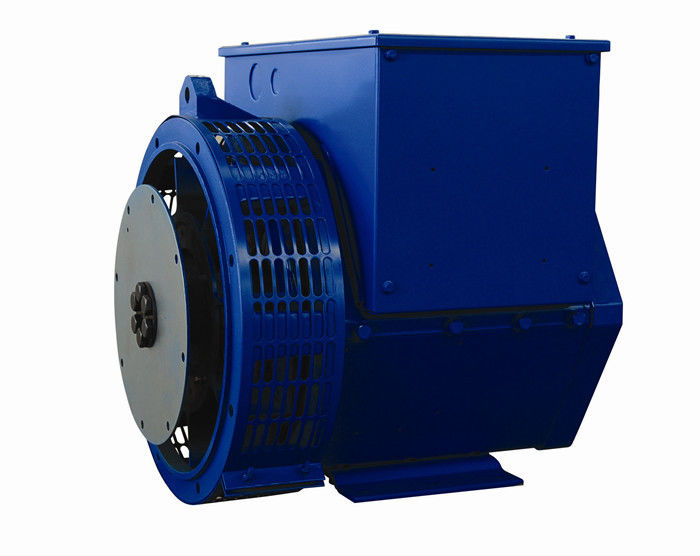

Brushless alternators Photos:

40kw 50kva Generator Head Electric Alternator Single Double Bearing 0



40kw 50kva Generator Head Electric Alternator Single Double Bearing 1
