ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine

1 SET
MOQ
Negotiation
Price
ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 16KW 20KVA
Frequency: 50/60HZ
Voltage: 220/380V 230/400V 240/415V
Engine: WUXI FAWDE Engine
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled / Radiator
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: SOCOMMEC / AISKAI And So On
High Light:

industrial diesel generators

,

diesel silent generator

Basic Infomation
Place of Origin: WUXI city of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP22FWS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine



Model Soundproof diesel generator set

GP22FWS

SET

Rated power(Kw/kva) Prime power

16KW/20KVA

Frequency(Hz)

50

Phase

3

Voltage(V)

380/220V

Current(A)

23

Fuel capacity(L)

100

Fuel consumption(L/Hour)

100% Prime power

4

Dimension (mm)

L

1880

W

800

H

1080

Weight(kg)

770

Noice level for silent type (Db/7m)

56

ENGINE

Model

4DW91-29D

Prime power(kw/kva)

16/20

Cylinders

4

Bore×stroke(mm)

93×102

Intake Method

Natural intake

Displacement(L)

2.771

Speed governing

Mechanical governor

Cooling starting method

Water cooling

ALTERNATOR

Model

G184E

Rated power(kw/kva)

12/15

Insulation class

H

Alternator enclosure

IP23

THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.

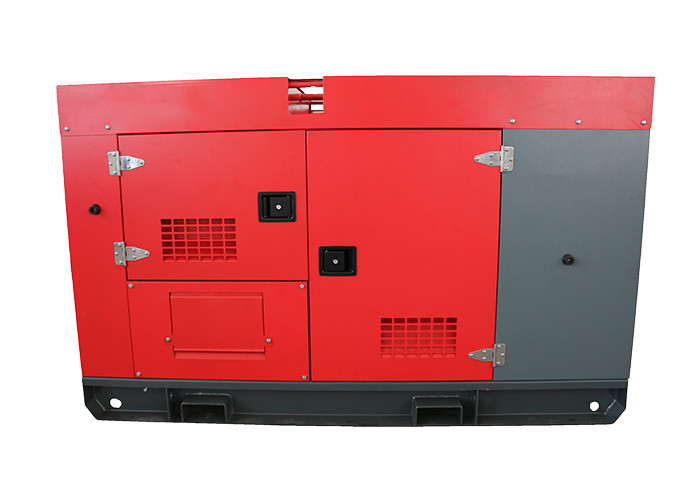

ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine 0
Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards




ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.





 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.

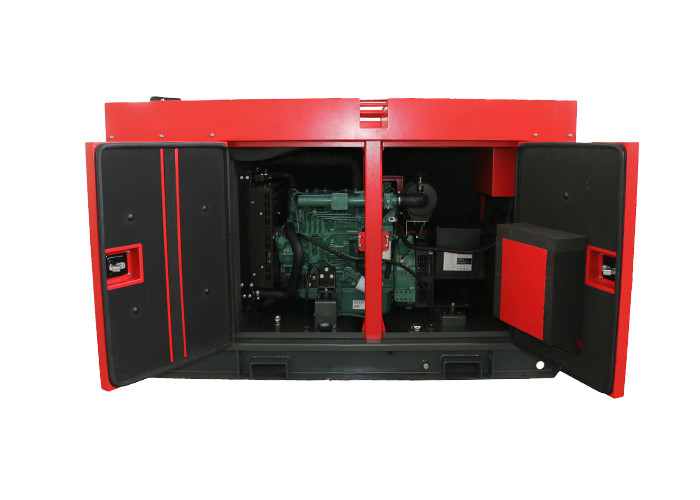

ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine 1

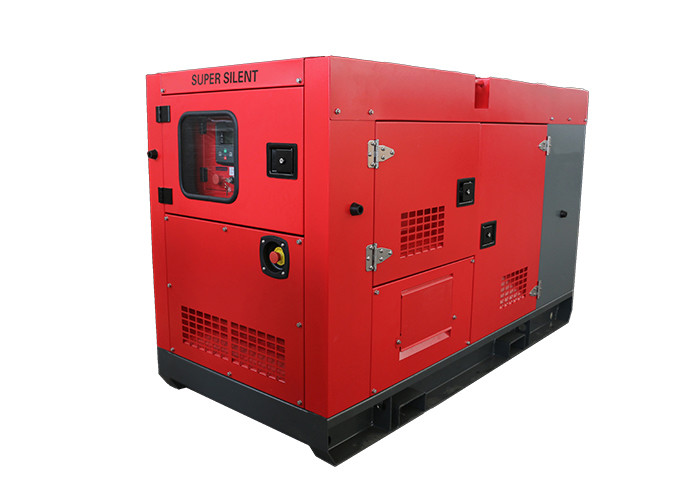

ATS 20kva Diesel Silent Generator With Water Heater , WUXI FAWDE Engine 2
