Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF

1 set
MOQ
Negotiation
Price
Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 32KW/40KVA
Frequency: 50HZ Z
Current: 57.6A
Voltage: 220/380V
Engine: Cummins / 4BT3.9-G1
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Sound Level/db: 72dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
High Light:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: WUXI,CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP44DCS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF



Technical specification
Genset Model GP44DCS
Prime Power 32KW/40KVA
Standby Power 35KW/44KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 58A
Genset Structure SILENT
Dimension 2350×1000×1335mm
Net Weight 1160KG
Noise level 70dB at 7 meters
Fuel Tank Capacity 120L
Engine Model 4BT3.9-G1
Engine Features 4-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 3.9L
12-hour Power(kw) 36KW/1500
Fuel Consumption L/H 6.7L/H
Compression Ratio 16.5:1
Governor type Mechanical
Alternator Model STAMFORD / PI144J
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:

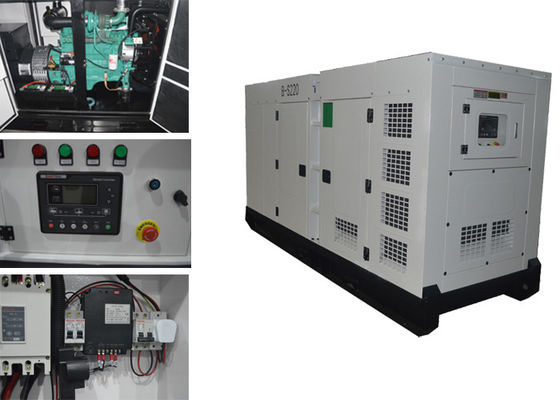

Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF 1

Three Phase Four Wire 40kVA Cummins Diesel Generators With ATS AMF 2
