20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator

1 SET
MOQ
Negotiation
Price
20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 25 KW
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: KOFO,FAWDE,Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP33KFS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP33KFS
1.2 Prime at 50HZ, 40℃ ambient 25KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 27KW 33KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1500*700*1050,
Silent: 2000*940*1200
1.7 Weight Open: 700kg, Silent: 1100kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Ricardo/kofo
2.2 Engine Model N4100DS-30
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Turbocharged
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 90×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.54
2.13 Engine Prime Power at 1500rpm 26KWm
2.14 Engine Standby Power at 1500rpm 29KWm
2.15 Lubrication oil capacity 8L
2.16 Oil consumption 0.04
2.17 Dry weight of base 240Kg
2.18 Dry weight of Gen Pac 260Kg
2.19 Overall dimension(G.P) 1120×810×760(mm)
2.2 Overall dimension(base) 750×600×735(mm)
2.21 27℃ air consumption ( m³/ min) 2.1
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model G184G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 39.7A
3.12 Efficiency 0.858
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 150kg

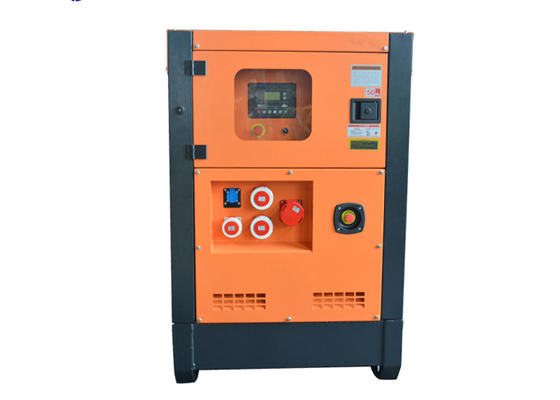

20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator 0
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional

Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.


2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If you are interested, please contact with us at any time!

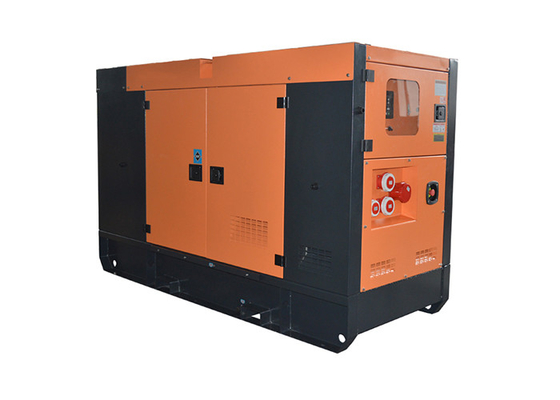

20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator 1

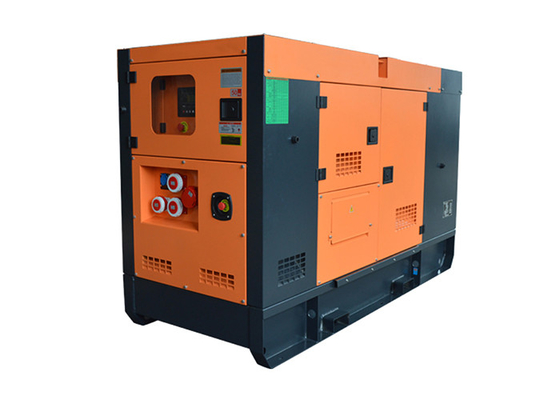

20 Kw 25 Kw Silent Diesel Generator Set with Water Cooled , Quiet Portable Generator 2
