Soundproof FAWDE Diesel Generator set 50kva 40kw Denyo type 50hz 60hz
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Output Power||40KW 55KVA||Frequency||50/60HZ|
|Voltage||220v - 690v Optional||Engine||FAWDE,Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional|
|Alternator||Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional||Controller||Deepsea, Smartgen, Harsen For Optional|
|MCCB||ABB Or Delixi||Cooling System||Water Cooled|
|Genset Type||Open Type, Silent Type, Container Type, Trailer Type For Optional||ATS||Optional|
emergency diesel generator,
silent diesel generator set

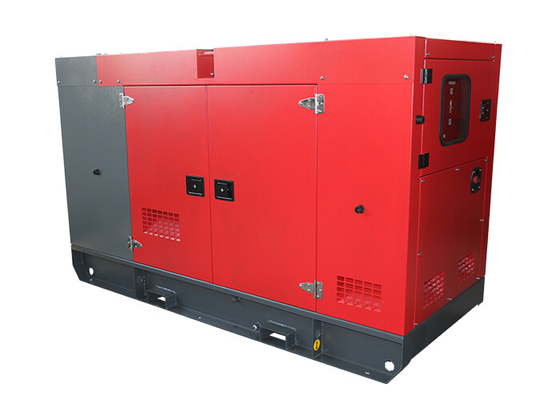

Soundproof FAWDE Diesel Generator set 50kva 40kw Denyo type Generating 50hz 60hz
|1. Specification of Genset|
|Prime/ Standby Power||40kw/50kva 44kw/55kva|
|Rated Frequency (HZ)||50|
|Dimensions (mm) (L×W×H)||1710x700x1340|
|Genset Weight (kg)||960|
|2. Specification of Diesel Engine|
|Engine Brand||powered by FAWDE engine|
|Number of Cylinders||4|
|Cylinder Arrangement||Vertical in-line|
|Aspiration||Turbocharged, Water cooling|
|Fuel System||PT type fuel pump, EFC|
|Bore×Stroke (mm×mm)||159 x 159|
|Cooling System||Forced Water Cooling Cycle|
|Total lubrication System Capacity (L)||95|
|Fuel Consumption at 100% Load (L/H)||57|
|Starting Method||DC24V electrical starting|
|3. Specification of Alternator|
|Alternator Brand||Stamford / Meccalte|
|Alternator Model||UCI 224D|
|Number of Phase||3|
|Connecting Type||3 Phase and 4 Wires|
|Number of Bearing||1|
|Exciter Type||Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire|
|Telephone Influence Factor (TIF)||≤50|
|Voltage Regulation, Steady State||≤±1%|
|Transient State Voltage||≤-15%~+20%|
|4. Specification of Control Panel (with Deepsea Controller)|
|The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.|
|The features of Deepsea controller:|
|Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.|
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If you are interested, please contact with us at any time!
