Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A

1 SET
MOQ
negotiation
Price
Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 625KVA/500KW
Standby Power: 688KVA/550KW
Engine: Cummins
Alternator: Orginal Stamford / Leory Somer
Controler Panel: DeepSea / Smartgen
Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
Certificate: ISO/CE/ KENYA PVOC
Highlight:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP688CCS
Payment & Shipping Terms
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Product Description

Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A



Technical specification
Genset Model GP688CCS
Prime Power 500KW/625KVA
Standby Power 550KW/688KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 902A
Genset Structure SILENT
Dimension 5000×1800×2450mm
Net Weight 5500KG
Noise level 83dB at 7 meters
Fuel Tank Capacity 800L
Engine Model KTAA19-G6A
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 18.9L
MAX Power(kw) 575KW/1500
Fuel Consumption L/H 129.5L/H
Compression Ratio 13:01
Governor type ELECTIC
Alternator Model CHINESE /G544FS
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A 0

Description:



1. Diesel Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:



1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAW engine , good quality , good price.



Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If have any questions, please contact us. Your inquiry would be appreciated.

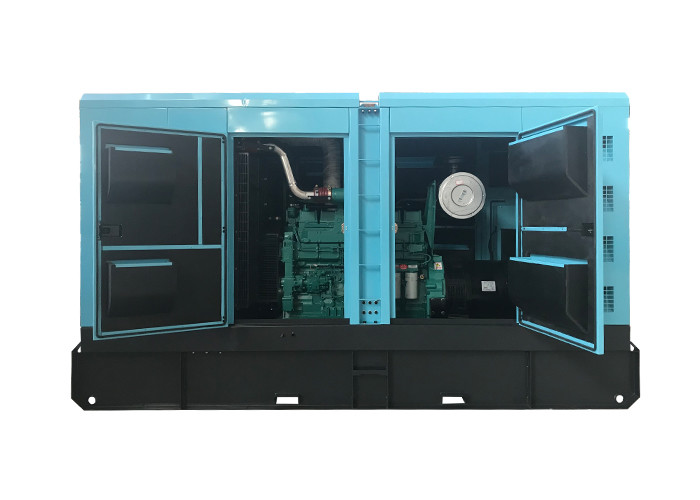

Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A 1

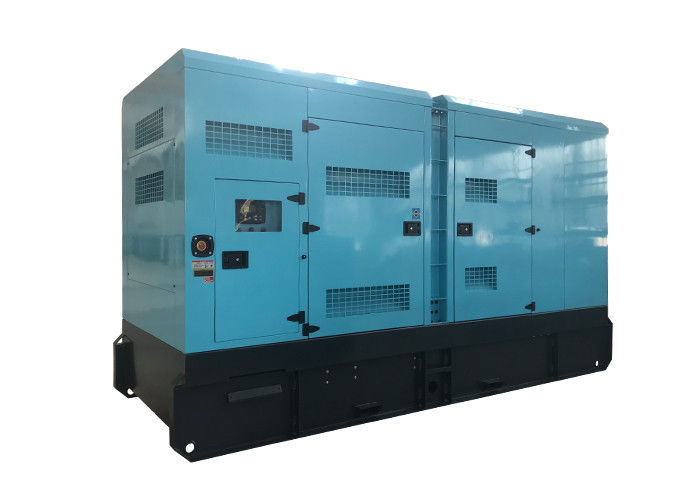

Prime cummins power generator 625kva Three Phase with engine KTAA19-G6A 2
