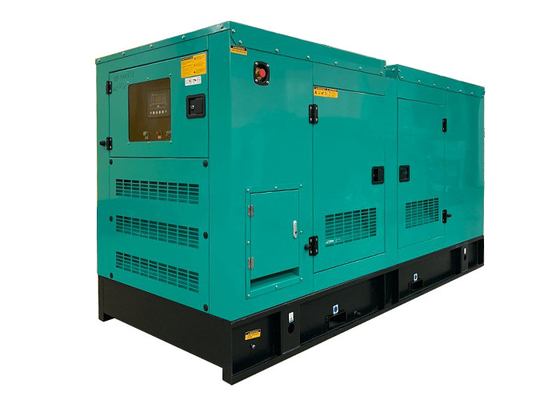

EURO emergency diesel generator 100kva 110kva super silent white color canopy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 100KVA/80KW | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220/380V 230/400V 240/415V | Engine | IVECO / NEF67SM1A |
| Alternator | Original Stamford / Mecc Alte | Controller | Deepsea, Smartgen |
| MCCB | ABB Or Delixi , 3 Pole | Cooling System | Water Cooled |
| Genset Type | Super Silent , White Color Canopy | ATS | ABB / Socommec / Asikai |
| Warranty Time | 1 Year Or 1000 Hours | Trailer | With 2 Wheels |
| High Light | emergency diesel generator,silent diesel generator set |
||
Product Description
100KVA CUMMINS GENERATOR SPECIFICATION:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-IV100S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 80KW 100KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 88KW 110KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 3150×1100×1780mm |
| 1.7 | Weight | 2010kg |
| 1.8 | Fuel consumption 100% prime load | 18L/h |
| 1.9 | Total heat radiated to ambient | 17KW |
| 1.10 | Noise Level at 7m (Normal/Super) | 65dB |
| 1.11 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.12 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | IVECO |
| 2.2 | Engine Model | NEF67SM1A |
| 2.3 | Governor/Class | Mechanical/Electrical |
| 2.4 | Cylinder NO. | 6 |
| 2.5 | Engine build | Line |
| 2.6 | Fuel spray pattern | PT direct injection |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Aspiration | Turbocharged |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 102×120 mm |
| 2.11 | Compression ratio | 17.5:1 |
| 2.12 | Displacement | 5.9 L |
| 2.13 | Engine Prime Power at 1500rpm | 86KWm |
| 2.14 | Engine Standby Power at 1500rpm | 92KWm |
| 2.15 | Battery capacity | 100A/hr |
| 2.16 | Starting/Min temperature | 4℃ |
| 2.17 | Lubrication oil capacity | 16L |
| 2.18 | Coolant capacity - radiator and engine (40℃) | 28L |
| 2.19 | Exhaust temp - full load prime | 498℃ |
| 2.20 | Exhaust gas flow - full load prime | 1020m 3/h |
| 2.21 | Exhaust gas back pressure max | 76mmHg |
| 2.22 | Air flow - radiator (40℃ ambient) | 2.1 m 3/s |
| 2.23 | Pusher fan head (duct allowance) 40℃ | 10mmH 2O |
| 2.24 | Air intake - engine- full load prime | 248m 3/h |
| 2.25 | Standard Air intake temp | 25℃ |
| 2.26 | Fuel type | #0 Diesel (Natural temperature) |
| 2.27 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.28 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | Stamford/UCI274C |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 144.3A |
| 3.12 | Efficiency | 0.903 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 385kg |

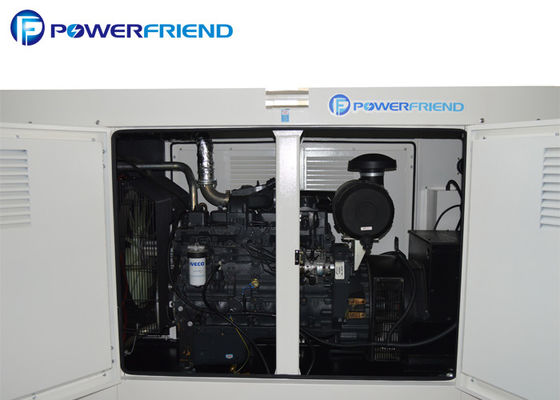

Euro 100KVA diesel generator photos:
Description:
1. Rated power: 100KVA/80KW
2. Max power: 110KVA/88KW
3. Engine: Italy IVECO/ NEF67SM1A
4. Alternator: Genuine Stamford, Marathon, Meccalte, etc
5. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing
6. ATS is optional, including ABB/ SOCOMMEC and world famous brand
7. Type: Soundproof type, Trailer type, Mobile type
8. Color: White/ Red / Yellow /Blue
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration
mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. Big OEM of Perkins /Cummins engines and Stamford alternators
11. Easy to transport : lifting eyes located on the top of the canopy make easy move by cranes.
12. Easy to Maintain: The daily maintenace work can be performed on the two sides of the machine, and wide door allows you easily to get in the machine.
13. Humanized design: the oil drainage pump is loacted in the side door for easy operation
Clear labels in easy visible positions, providing adequate information for operators.
