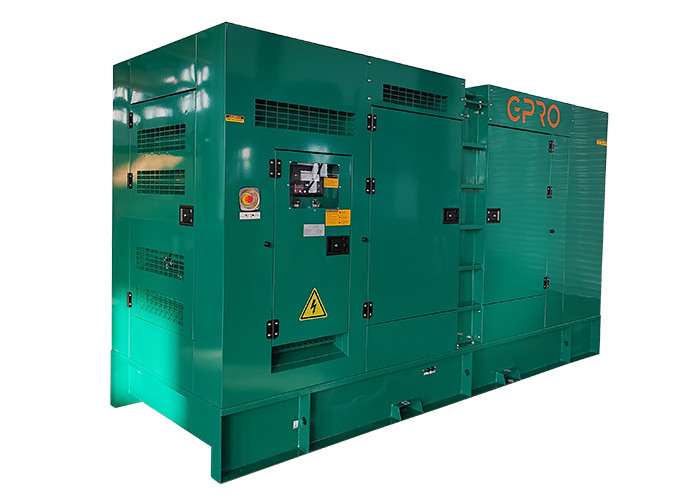

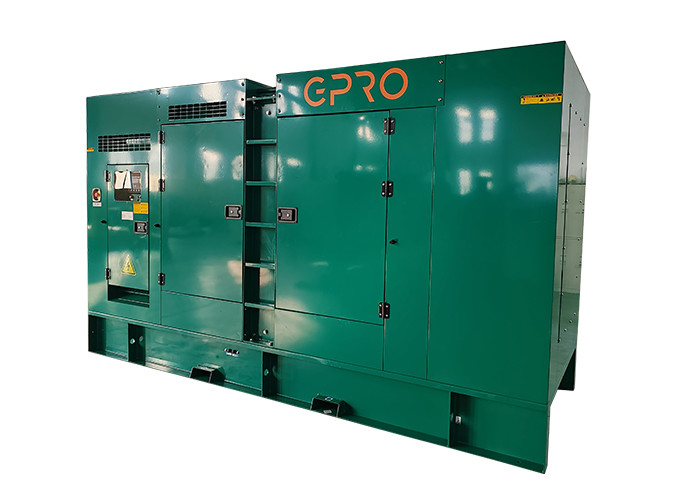

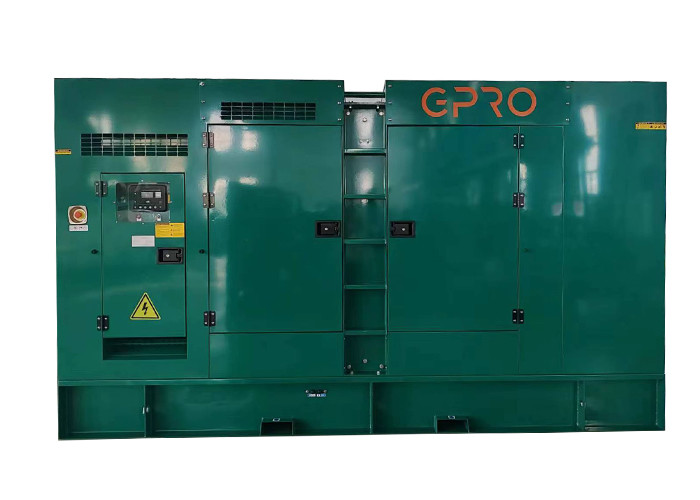

Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A

1 SET
MOQ
negotiation
Price
Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 400KVA/320KW
Standby Power: 440KVA/352KW
Engine: Cummins
Alternator: Orginal Stamford / Leory Somer
Controler Panel: DeepSea / Smartgen
Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
Certificate: ISO/CE/ KENYA PVOC
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP440CCS
Payment & Shipping Terms
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Product Description

Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A



Technical specification
Genset Model GP440CCS
Prime Power 320KW/400KVA
Standby Power 352KW/440KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 577A
Genset Structure SILENT
Dimension 4300×1600×2000mm
Net Weight 4000KG
Noise level 82dB at 7 meters
Fuel Tank Capacity 620L
Engine Model NTA855-G7A
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 140mm × 152mm
Displacement 14L
MAX Power(kw) 407KW/1500
Fuel Consumption L/H 82.9L/H
Compression Ratio 14:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI444F
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.



Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:
1.ATS

2.SynchronizationSystem

3.External daily fuel tank

4.Silent Canopy

5.Trailer

6.Auto Fuel Pump

7.Fuel and Water Separator

8.Lub Oil Heater

9.Coolant Heater

10.Fuel Drain Pump



Advantages:

. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.

Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A 1

Soundproof Cummins prime diesel generator 320KW 400KVA with engine NTA855-G7A 2
