38KVA 30KW Cummins Diesel Generators industrial with ATS cabinet
-
High Light
cummins diesel genset
,emergency diesel generator
-
Power(Prime/Standby)38KVA / 30KW
-
Frequency50HZ / 60HZ
-
Current57A
-
Voltage220/380V
-
EngineCummins / 4BT3.9-G1
-
ControllerSmartgen / DeepSea
-
MCCBDelixi /ABB
-
Sound Level/db68dB 7 Meter
-
Warranty1 Year Or 1000 Hours
-
AlternatorOriginal Stamford / MECC Alter
-
Place of OriginWUXI
-
Brand NameGPRO
-
CertificationISO9001/ISO14001/CE/PVOC
-
Model NumberPF-DC42S
-
Minimum Order Quantity1 set
-
PriceNegotiation
-
Packaging Detailspoly wooden case
-
Delivery Time25 days
-
Supply Ability500 sets / Month
38KVA 30KW Cummins Diesel Generators industrial with ATS cabinet
30kw Cummins generator specification:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-DC42S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 30KW 38KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 33KW 42KVA |
| 1.4 | Rated Gen-set output | 240/415V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 2600X1000X1455mm |
| 1.7 | Weight | 1350kg |
| 1.8 | Fuel consumption 100% prime load | 14.7L/h |
| 1.9 | Total heat radiated to ambient | 17KW |
| 1.10 | Noise Level at 7m (Normal/Super) | 70dB |
| 1.11 | Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.12 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Cummins |
| 2.2 | Engine Model | 4BT3.9-G1 |
| 2.3 | Governor/Class | MER |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Fuel spray pattern | PT direct injection |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Aspiration | Turbocharged |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 102×120 mm |
| 2.11 | Compression ratio | 13.9:1 |
| 2.12 | Displacement | 3.9 L |
| 2.13 | Engine Prime Power at 1500rpm | 50KWm |
| 2.14 | Engine Standby Power at 1500rpm | 55KWm |
| 2.15 | Battery capacity | 100A/hr |
| 2.16 | Starting/Min temperature | 4℃ |
| 2.17 | Lubrication oil capacity | 9.5-8.5L |
| 2.18 | Coolant capacity - engine only | 7.2L |
| 2.19 | Exhaust temp - full load prime | 498℃ |
| 2.20 | Exhaust gas flow - full load prime | 1020m 3/h |
| 2.21 | Exhaust gas back pressure max | 76mmHg |
| 2.22 | Air flow - radiator (40℃ ambient) | 2.1 m 3/s |
| 2.23 | Pusher fan head (duct allowance) 40℃ | 10mmH 2O |
| 2.24 | Air intake - engine- full load prime | 248m 3/h |
| 2.25 | Standard Air intake temp | 25℃ |
| 2.26 | Fuel type | #0 Diesel (Natural temperature) |
| 2.27 | Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.28 | Exhaust system |
Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | STAMFORD / PI144J |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 240/415V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 69.5A |
| 3.12 | Efficiency | 0.903 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
Description:
1. Diesel Cummins 4BT3.9-G1
2. Alternator: Italy Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF.
4. Options: remote controller, synchronizing.
5. ATS cabinet
6. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original EURO ITALY engine , good quality , good price.

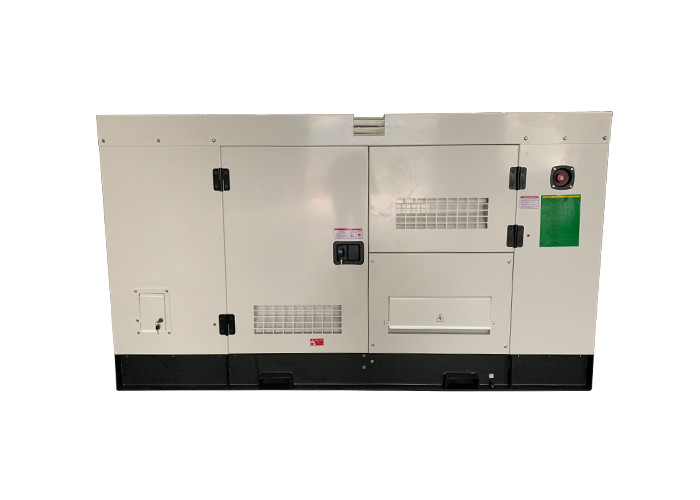

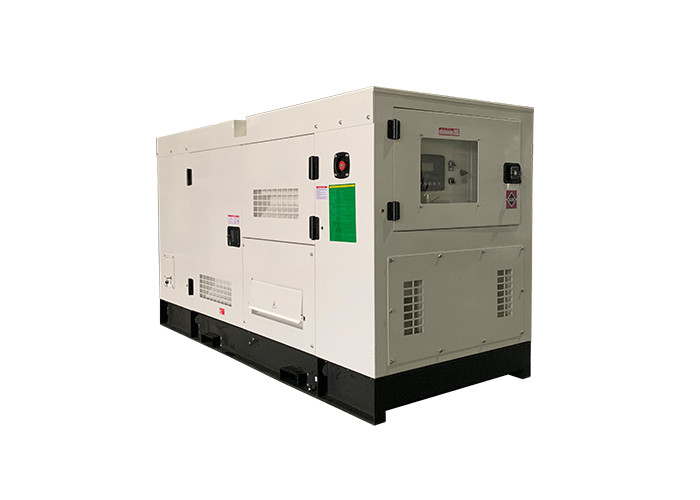

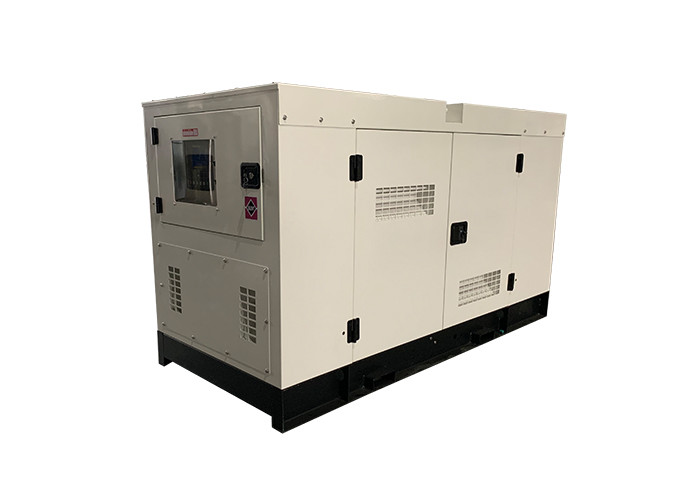

30KW Cummins generator photos:
