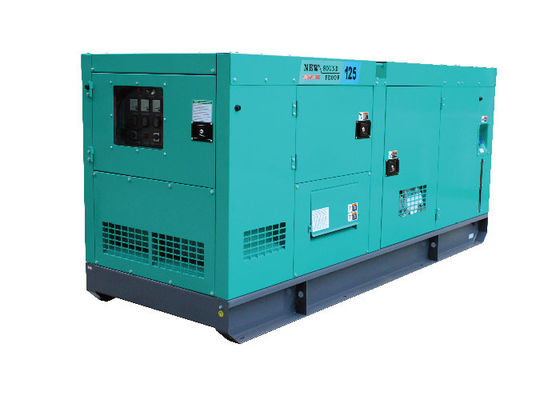

3 Phase 50kw 63KVA YUCHAI Diesel Generator Set Canopy With Deep Sea Controller
-
High Light
emergency diesel generator
,silent diesel generator set
-
Rated Power63KVA /50 KW
-
Standby Power70KVA/ 55 KW
-
EngineYUCHAI Diesel Engine YC4D85Z-D20
-
AlternatorOrginal Stamford / MECC ALTE
-
Controler PanelDeepSea 3110 / Smartgen
-
Air BreakerMCCB DLIXI 3 Pole Or 4 Pole
-
Warranty1 Year Or 1000 Hours
-
CertificateISO/CE/ CIQ/PVOC
-
Place of OriginWUXI city China
-
Brand NameGPRO
-
CertificationISO9001/ISO14001/CE
-
Model NumberGP70YCS
-
Minimum Order Quantity1 SET
-
Pricenegotiation
-
Packaging DetailsPOLY WOODEN CASE
-
Delivery Time25 DAYS
-
Supply Ability500/SETS/ MONTH
3 Phase 50kw 63KVA YUCHAI Diesel Generator Set Canopy With Deep Sea Controller
Diesel generator set 50kw auto start electric power generation super silent Specification:
| Genset Model | PF-YC70S |
| Prime Power | 50KW/63KVA |
| Standby Power | 55KW/70KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 100A |
| Genset Structure | SILENT |
| Noise Level | 78 dBA@7m |
| Dimension | 2600X1000X1455MM |
| Net Weight | 1000KG |
| Engine Model | YUCHAI / YC4D85Z-D20 |
| Engine Features | 4-cylinder,4 stroke,water cooled, direct injection |
| Bore * Stroke | 105*125 |
| Displacement | 4.5L |
| 12-hour Power(kw) | 66kw/1500 |
| Fuel Consumption | 239g/kw.h |
| Compression Ratio | 17:1 |
| Starting Mode | Electric Starter 24V |
| Fuel Tank Capacity | 90L |
| Alternator Model | STAMFORD /WR224E |
| Rated Power | 48KW/60KVA |
| Max Power | 53KW/66KVA |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 1780 | HGM1780 Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display. |
Description:
1. Power Range: 15KVA to 150KVA
2. Engine: Chinese brand KOFO
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Open type, super silent type, weatherproof type, Trailer type
7. Color: Red color
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Engine low fuel consumption.
2. All orignal engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
Generators photos:
Our products are sold all over the world, you can rest assured.
