Cummins 500kw 625KVA Canopy Type Diesel Generators With KTAA19-G6A Engine

1 SET
MOQ
negotiation
Price
Cummins 500kw 625KVA Canopy Type  Diesel Generators With KTAA19-G6A Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 500kw/625kva
Standby Power: 550kw/688kva
Engine: Original USA Cummins
Alternator: Orginal Stamford / Leory Somer
Controler Panel: DeepSea / Smartgen
Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
Certificate: ISO/CE/ KENYA PVOC
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP688CCS
Payment & Shipping Terms
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Product Description

Cummins 500kw 625KVA Canopy Type Diesel Generators With KTAA19-G6A Engine



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP688CCS
1.2 Prime at 50HZ, 40℃ ambient 500KW/625KVA
1.3 Standby at 50HZ, 40℃ ambient 550KW 688KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 5000×1800×2450mm
1.7 Weight 5000kg
1.8 Fuel consumption 100% prime load 149.5L/h
1.9 Total heat radiated to ambient 131KW
1.10 Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength steel

 basic frame, anti vibration

instrument between the engine

 and basic frame, cooling fan

 have protecting cap, control

cabinet and circuit breaker installed

on Gen-set.

1.11 Control system (Optional)

Basic control panel or

Advanced control panel  with

automatically  start-up function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTAA19-G6A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159mm
2.11 Compression ratio 13.0:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm /
2.14 Engine Standby Power at 1500rpm 610KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 50L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 91L
2.19 Exhaust temp - full load prime 576℃
2.20 Exhaust gas flow - full load prime 7452m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 15 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake  -  engine -  full load prime 2563m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable  lubricating

 oil, fuel    filter and air filter

2.28 Exhaust system

Adopt  industrial  high  efficiency

 muffler and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model CHINESE/G544E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1082.6A
3.12 Efficiency 0.933
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 1950kg

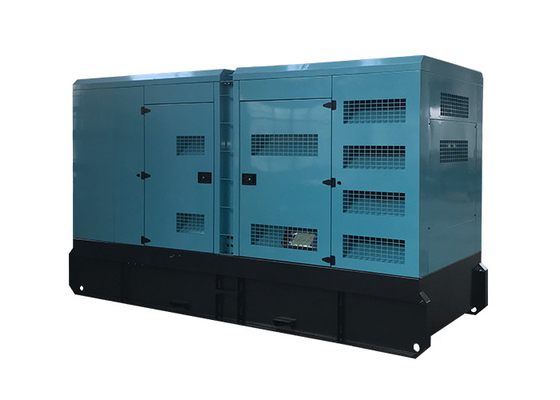

Cummins 500kw 625KVA Canopy Type  Diesel Generators With KTAA19-G6A Engine 0

Description:



1. Diesel Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:



1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAW engine , good quality , good price.



Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If have any questions, please contact us. Your inquiry would be appreciated.

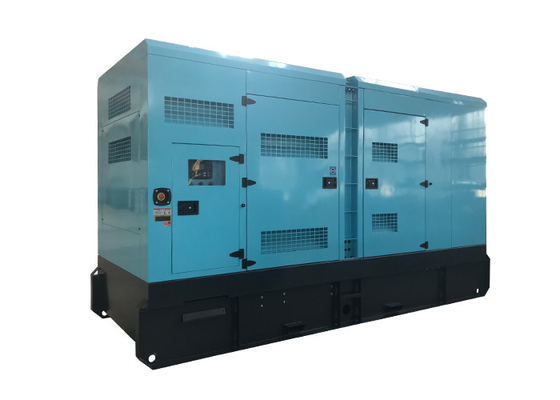

Cummins 500kw 625KVA Canopy Type  Diesel Generators With KTAA19-G6A Engine 1

Cummins 500kw 625KVA Canopy Type  Diesel Generators With KTAA19-G6A Engine 2
