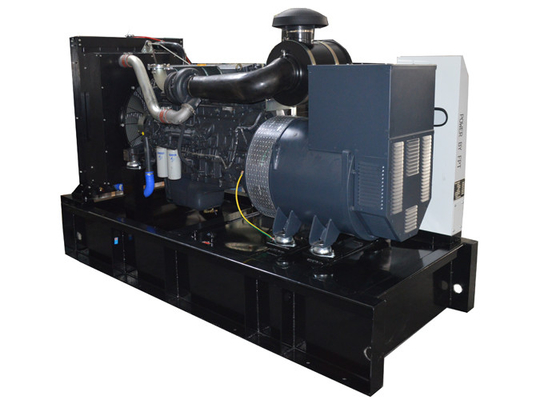

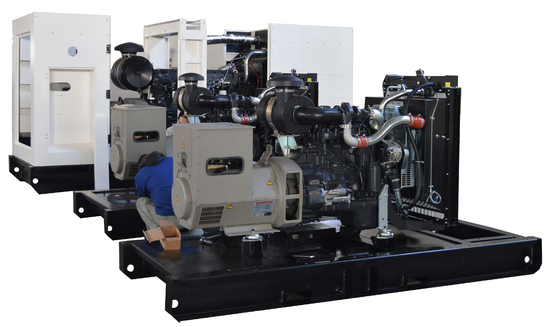

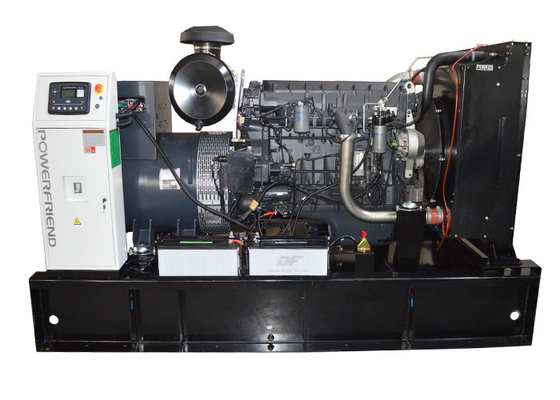

200KW Diesel Generator Set Italy FPT Brand Mecc Alternator Controller

200KW Diesel Generator Set Italy FPT Brand Mecc Alternator Controller
Features Gallery Product Description Request A Quote
Engine: Italy Brand C9
Alternator: Orginal Stamford / MECC ALTE
Controler Panel: ComAp MRS16
Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
Certificate: ISO/CE/ CIQ/PVOC
ATS: Option
High Light:

emergency diesel generator


silent diesel generator set

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP275FPS
Payment & Shipping Terms
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Product Description

Diesel generator FPT 200kw genset Specification:

Genset Model GP275FPS
Prime Power 200KW / 250KVA
Standby Power 220KW / 275KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 100A
Genset Structure SILENT
Noise Level 75 dBA@7m
Dimension 3200X1120X1580MM
Net Weight 1000KG
Engine Model Doosan  / DP086LA
Engine Features 6-cylinders,


4 stroke,water cooled, direct injection
Bore * Stroke 140*152
Displacement 14L
12-hour Power(kw) 250kw/1500
Fuel Consumption 53L
Compression Ratio 17.5:1
Starting Mode Electric Starter 24V
Fuel Tank Capacity 90L
Alternator Model STAMFORD /UCDI274K
Rated Power 200KW / 250KVA
Max Power 220KW / 275KVA
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
ComAp MRS16 HGM1780 Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display.


1. Power Range:  40KVA to 400KVA

2. Engine: FPT / C9

3. Alternator: Stamford / Mecc Alte

4. Controller: Deepsea or Smartgen

5. Type: Open type, super silent type, weatherproof type, Trailer type
6. Color: Red color
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:

1. Engine low fuel consumption.

2. All orignal engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–        frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.
