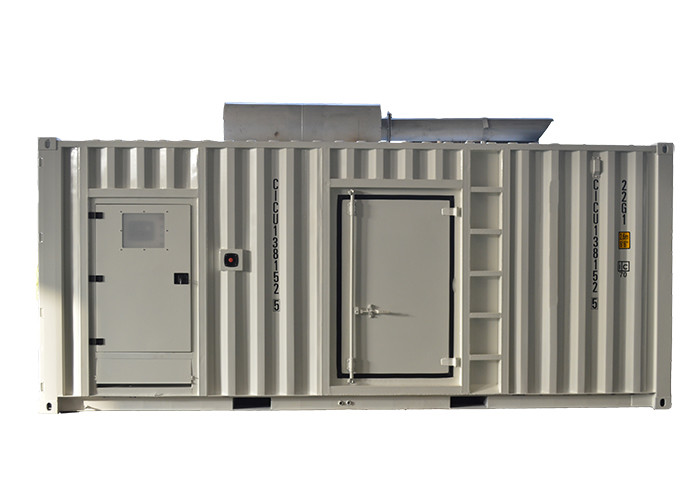

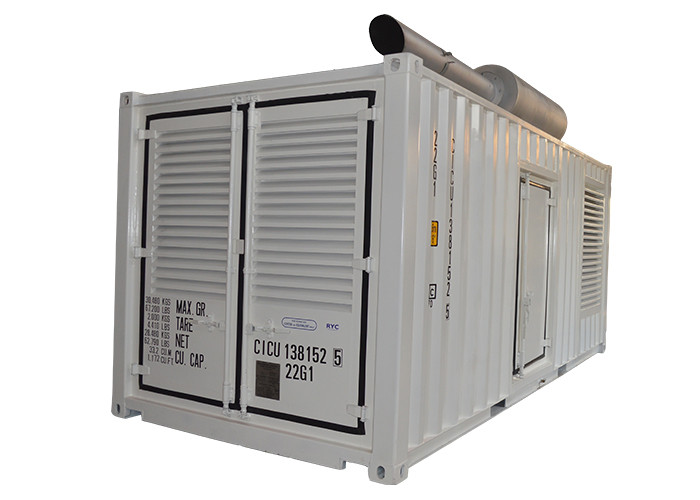

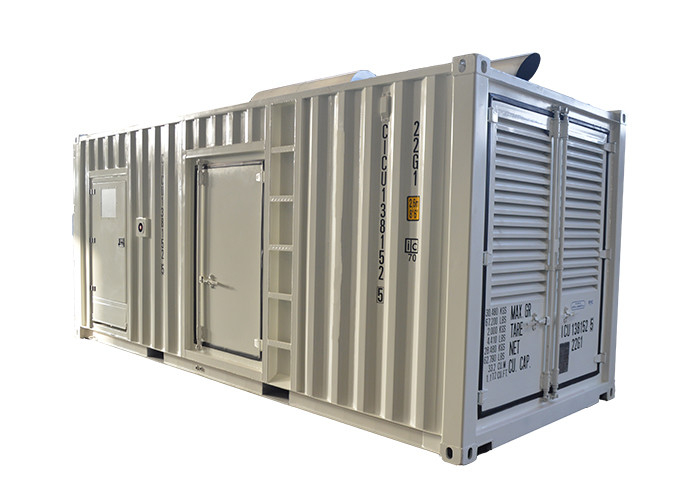

Container 1000kva Diesel Silent Generator Set 800kw 20GP By Cummins Engine
|
Genset |
Power Capacity |
Prime Power |
1500kva / 1200kw |
|
Standby Power |
1650kva / 1320kw |
||
|
Rated Voltage |
Volt |
400/230V |
|
|
Rated Current |
Amp |
1899 |
|
|
Rated Frequency |
Hz |
50 |
|
|
Rated Speed |
RPM |
1500 |
|
|
Power Factor / Phase |
Cos 0.8 Lagging / 3 phase |
||
|
Cooling System |
Closed cycle water-cooled with fan, water tank |
||
|
Overall Dimension |
(L×W×H) mm |
5050*2050*2450 | |
|
Gross Weight |
KG |
8500 |
|
|
Overall Dimension (soundproof) |
(L×W×H) mm |
40HQ | |
|
Gross Weight |
KG |
- |
|
|
Diesel |
Engine Brand |
Cummins |
|
|
Engine Model No. |
KTA50-G3 |
||
|
Rated Power |
kW |
1000 |
|
|
Engine Structure |
12 cylinders vertical in-line, 4 stroke,Turbocharged, |
||
|
Speed Governor |
Electronic |
||
|
Compression Ratio |
15.1:1 |
||
|
Displacement |
litre |
4.75 |
|
|
Lube Capacity |
litre |
- |
|
|
Fuel System |
PT type fuel injection pump |
||
|
Fuel Consumption |
L/H |
258.6 |
|
|
Lube Consumption |
g/kw.h |
0.5% |
|
|
Rotating Speed |
RPM |
1500 |
|
|
Starting Mode |
By 24V batteries |
||
|
Alternator |
Alternator Brand |
Stamford |
|
|
Alternator Model |
PI 634G |
||
|
Features |
Brushless, self-excitation, AVR regulation, |
||
|
Insulation Class |
Class H |
||
|
Steady Voltage Regulation |
≤±1% |
||
|
Instant Voltage Ragulation |
-15%~+20% |
||
|
Voltage Regulation Scope |
>10% |
||
|
Power Factor |
0.8 Lagging |
||
|
Connection Type |
3 phase 4 wire, Y type |
||
|
Controller |
Model No. |
Smartgen |
|
Cummins / Stamford Genset Features:
1. Engine: Cummins industrial diesel engine
2. Heat Dissipation: Radiator 50°C max, fans are driven by belt, with safe guard
3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems
4. Control Panel: Digital auto-start LED panel
5. Shakeproof: Anti Vibration Suspension Absorber
6. Safe Filter: Dry type air filter, fuel filter, oil filter
7. Breaker: Mould case circuit breaker
8. Power: 24V DC start motor and storage battery
9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
