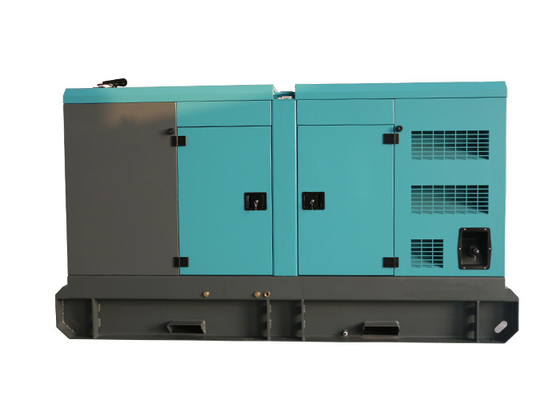

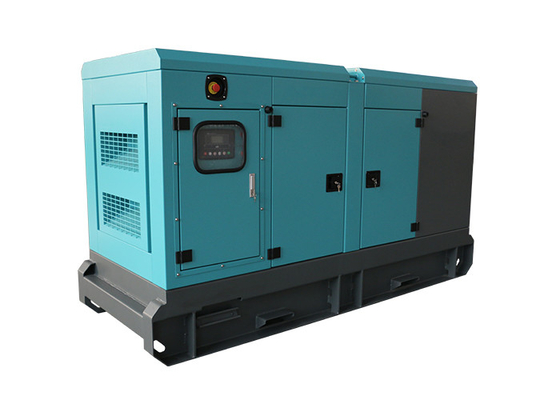

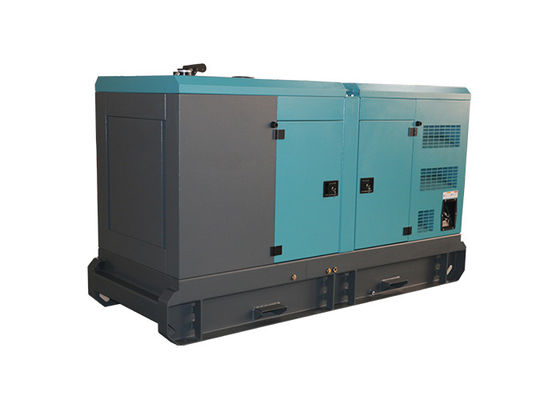

AC 3 Phase Cummins Dg Set 4 Cylinders Soundproof Diesel Generator 60kva / 48kw
| 1. Specification of Genset |
| Gensets Model |
GP66DCS |
| Prime Power |
48kw/60va |
| Rated Voltage |
380/220V |
| Rated Frequency (HZ) |
50/60hz |
| Rated Speed |
1500rpm/1800rpm |
| Power Factor |
0.8(lagging) |
| Dimensions (mm) (L×W×H) |
2650x1020x1480 |
|
| Genset Weight (kg) |
1400 |
| 2. Specification of Diesel Engine |
| Engine Brand |
Cummins |
| Engine Model |
4BTA3.9-G2 |
| Number of Cylinders |
4 |
| Cylinder Arrangement |
Vertical in-line |
| Cycle |
Four stroke |
| Aspiration |
Turbocharged, Water cooling |
| Fuel System |
PT type fuel pump, EFC |
| Bore×Stroke (mm×mm) |
159 x 159 |
| Displacement (Liter) |
50.3 |
| Compression Ratio |
13.9:1 |
| Speed Governor |
Electronic |
| Cooling System |
Forced Water Cooling Cycle |
| Total lubrication System Capacity (L) |
95 |
| Fuel Consumption at 100% Load (L/H) |
57 |
| Starting Method |
DC24V electrical starting |
| 3. Specification of Alternator |
| Alternator Brand |
Stamford / Meccalte |
| Alternator Model |
224E |
| Number of Phase |
3 |
| Connecting Type |
3 Phase and 4 Wires |
| Number of Bearing |
1 |
| Protection Grade |
IP21 |
| Altitude |
≤1000m |
| Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class |
H |
| Telephone Influence Factor (TIF) |
≤50 |
| THF |
≤2% |
| Voltage Regulation, Steady State |
≤±1% |
| Transient State Voltage |
≤-15%~+20% |
| 4. Specification of Control Panel (with Deepsea Controller) |
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function. |
| The features of Deepsea controller: |
| Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory. |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2. SynchronizationSystem
3. External daily fuel tank
4. Silent Canopy
5. Trailer
6. Auto Fuel Pump
7. Fuel and Water Separator
8. Lub Oil Heater
9. Coolant Heater
10. Fuel Drain Pump
