Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine

  • Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine
  • Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine
  • Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine
Place of Origin CHINA
Brand Name POWER FRIEND
Certification ISO9001/ISO14001 /CE
Model Number PF-DC28S
Minimum Order Quantity 1
Price 5800-6200
Packaging Details poly wooden case / poly bag
Delivery Time 25 days after get the deposit
Payment Terms Western Union, T/T, L/C
Supply Ability 1 set / 25 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 25KVA/20KW Standby Power 28KVA /22KW
Noise 65dB 7 Meters Super Silent Type Fuel Tank 8 Hours /24 Hours/ 72 Hours
Certificate ISO9001/ISO14001/CE Altenrator Stamford / Mecc / Chinese Brand
Controller DEEPSEA / SMARTGEN/ HARSEEN ATS Option
Battery Charger Including , 24V / 12V Battery Charger Color Optional
High Light

power generating set

,

silent diesel generators
Leave a Message
Product Description





Rated 20kw/25kva low noise Liquid cooled diesel generator with Cummins engine specification:



Genset Model PF-DC28S
Prime Power 20KW/25KVA
Standby Power 22KW/28KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 30A
Genset Structure Silent
Noise Level 65dB (7meters)
Dimension (Silent type) 2000x940x1200MM
Net Weight(Silent type) 1100KG

Engine Model CUMMINS / 4B3.9-G1
Engine Features 4-cylinder,4 stroke,water cooled, direct injection
Bore * Stroke 90*100
Displacement 2.54L
12-hour Power 21/1500
Fuel Consumption 240
Compression Ratio 17:1
Starting Mode Electric Starter 12V
Fuel Tank Capacity 40L

Alternator Model Original STAMFORD / PI144D
Rated Power 16KW/20KVA
Max Power 18KW/22KVA

Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling



Description:



1. Engine:  Cummins diesel engine

2. Alternator: Stamford / Mecc Alte / Chinese brand engine

3. Controller: UK Deepsea / Smartgen / ComAp / Harseen

4. Options: remote controller, synchronizing.

5. ATS is optional:  Aiskai / Socommec / ABB and so on brand

6. Type: Silent type, weather proof, Trailer type

      7. Color: Any color

      8. Support OEM



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow





Competitive Advantage:



1. Competitive price

2. Good quality engine and alternator

3. Fast delivery. engine in stock

4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service



FAQ:



Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.



Super silent details:

Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine 0



Product Show:



Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine 1

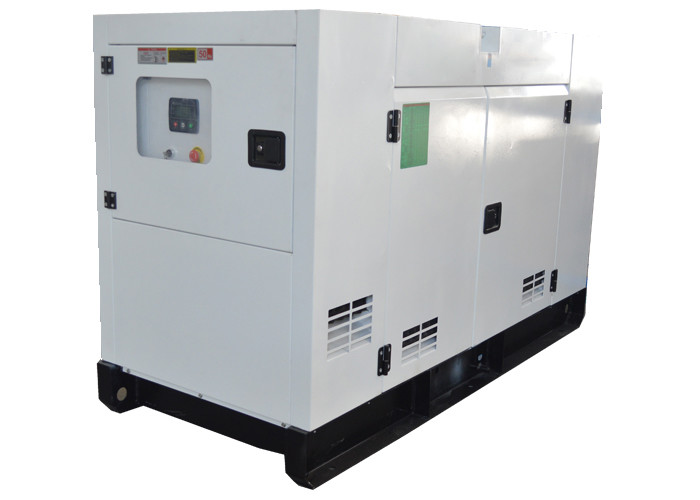

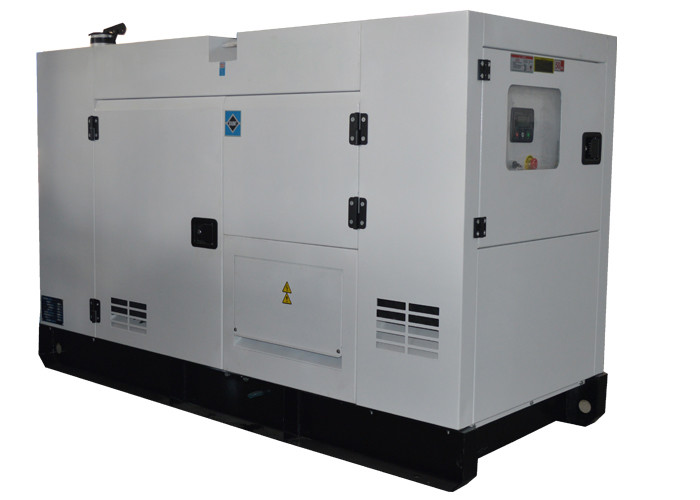

SILENT TYPE Cummins 20KW GENERATOR PHOTOS:



Rated 20kw / 25kva Liquid Cooled Silent Generator Set With Cummins Engine 2
