Fawd Eengine Water Cooled Diesel Generator Set, Prime Power 100kva/80kw
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 80KW/100KVA | Standby Power | 88KW/110KVA |
|---|---|---|---|
| Engine | FAWDE CA6DF2-14D | Alternator | Stamford Type, Brushless, 100% Copper |
| Controler Panel | DeepSea / Smartgen | Circuit Breaker | MCCB DLIXI 3 Pole Or 4 Pole |
| Warranty | 1 Year Or 1000 Hours | Certificate | ISO/CE/ KENYA PVOC |
| Type | Silent Or Open Type | Cooling | Water Cooling |
| High Light | emergency diesel generator,silent diesel generator set |
||
Product Description
| Specification of PowerFriend Genset | ||
| Genset | Genset Model | PF-FW110 |
| Prime at 50HZ, 40℃ ambient | 80KW 100KVA | |
| Standby at 50HZ, 40℃ ambient | 88KW 110KVA | |
| Rated Gen-set output | 230/400V 50Hz | |
| Dimension (L×W×H)mm | Open: 2600*1000*1600, Silent: 3400*1400*1900 |
|
| Weight | Open: 1600kg, Silent: 2200kg | |
| Fuel consumption 100% prime load | 19L/hr | |
| Rated currency | 144A | |
| Circuit Breaker | Delixi/CHINT or Customized | |
| Base fuel tank | At least for 8-hour contunuous running | |
| Controller | Deepsea/ ComAp/ Smartgen | |
| Noise Level/dBA @7m(Silent type only) | 65 | |
| Engine | Engine Brand | FAWDE |
| Engine Model | CA6DF2-14D | |
| Governor/Class | Electronic | |
| Cylinder NO. & Build | 6 | |
| Cooling mode | Line | |
| Bore and stroke | 110×115 mm | |
| Compression ratio | 17:01 | |
| Displacement | 6.55 | |
| Engine Prime Power at 1500rpm | 96KWm | |
| Engine Standby Power at 1500rpm | 105KWm | |
| Alternator | Alternator Brand | Stamford type, brushless, 100% copper |
| Insulation class | H | |
| Protection class | IP23 | |
Description:
1. Power Range: 20-2500kw
2. Engine: DCEC Cummins, CCEC Cummins, USA Cummins
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

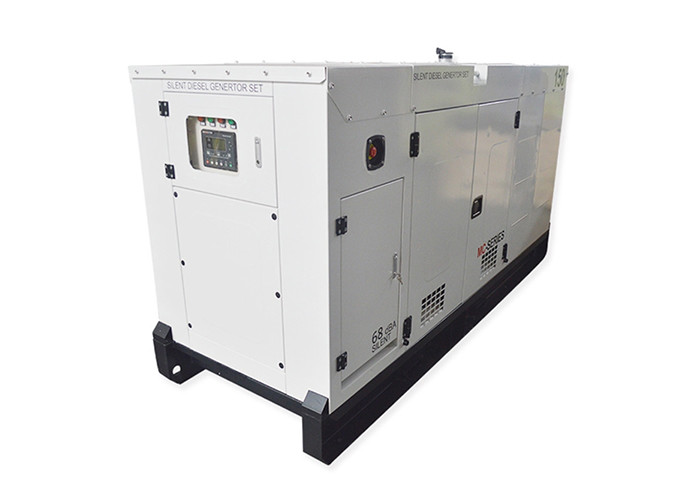

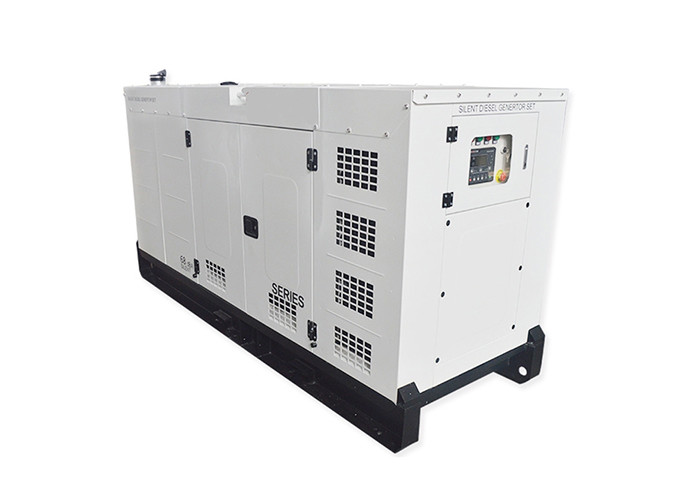

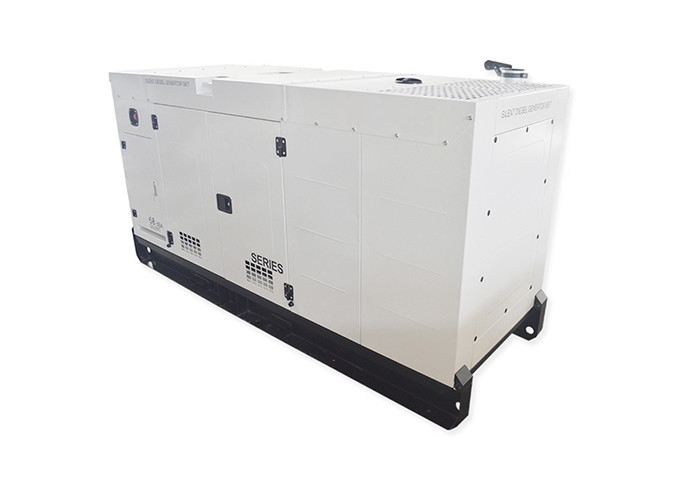

photos of the generator set:
