Home /Products/Diesel Generator Set/40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw

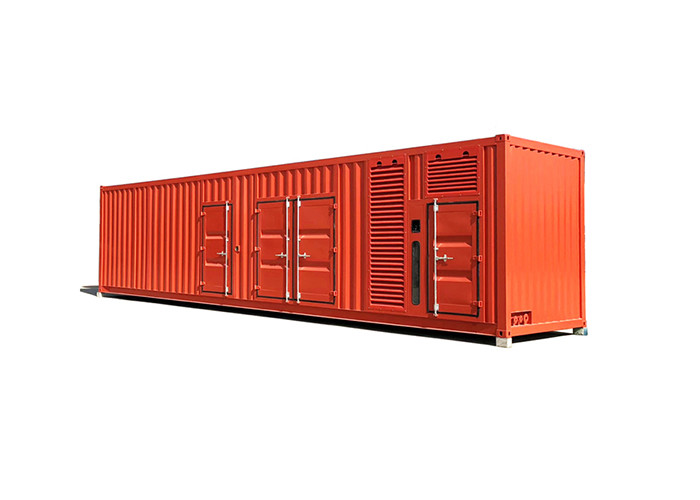

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw

1

MOQ

TBD

Price

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw

Features Gallery Product Description Request A Quote

Features

Specifications

Type: 40FT Container

Engine: Perkins

Alternator: STAMFORD Type

Control Panel: Smartgen

Warranty: 12 Months/1000 Hours

Cooling System: Water-cooled

Option1: Automatic Transfer Switch

Options: Synchronization System

Noise Level: 80db/7m DBA

Highlight:

emergency diesel generator

,

silent diesel generator set

Basic Infomation

Place of Origin: China

Brand Name: GPRO

Certification: iso9001/ ISO14001/ CE

Model Number: GP2063PS

Payment & Shipping Terms

Packaging Details: 40FT Container

Delivery Time: one month

Gallery

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw

Product Description

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw

Technical specification
Technical specification
Genset Model	GP2063PS
Prime Power	1500KW/1875KVA
Standby Power	1650KW/2063KVA
Phase Number	3
Power Factor	0.8
Rated Voltage	230/400V
Frequency	50 HZ
Rated Current	2706A
Genset Structure	SILENT
Dimension	12192×2435×2896mm
Net Weight	15000KG
Noise level	85dB at 7 meters
Fuel Tank Capacity	/
Engine Model	4016TAG1A
Engine Features	16-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke	160mm × 190mm
Displacement	61L
12-hour Power(kw)	1588KW/1500
Fuel Consumption L/H	379.5L/H
Compression Ratio	16:01
Governor type	Electric
Alternator Model	STAMFORD /PI734E
Excitation Mode	brushless self-excited
Insulation Class	H
Protection Class	IP23
Construction Type	SAE Disc-coupling
Controler panel
Smartgen 6120	intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw 0

40 Ft Container 1875 Kva 3 Phase Diesel Generator 1500 Kw 1
