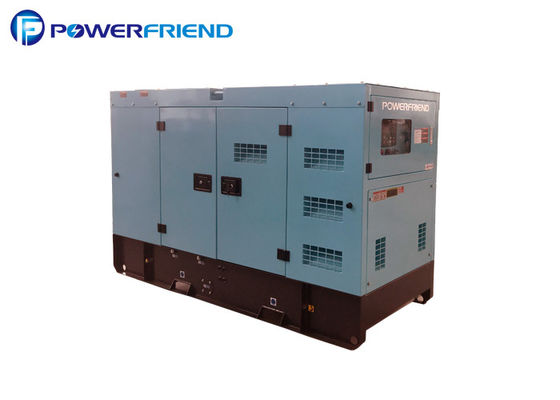

Standby 66kva Prime 60Kva Waterproof Generator Set With Soundproof Canopy

Place of Origin Wuxi, China
Brand Name PowerFriend
Certification ISO/CE
Model Number PF-DC66S
Minimum Order Quantity 1 set
Price Contact us for the best quotation
Packaging Details poly wooden case or plastic poly
Delivery Time 25 days
Supply Ability 300 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Prime Power 48kw / 60kva Frequency 50HZ / 60HZ
Current 86A Voltage 220/380V, 230V/400V, 240V/415V
Engine Cummins Engine DCEC Controller Smartgen/ DeepSea/ Comap
MCCB Delixi/ ABB / Aisikai Warranty 1 Year Or 1000 Hours
Type Soundproof, Weatherproof Fuel Tank At Least 8 Hours Continuous Working
High Light

emergency diesel generator


silent diesel generator set

Leave a Message
Product Description


Standby 66kva Prime 60Kva Diesel Generator Set with Soundproof canopy, Weatherproof Generator


diesel generator  specification:

1.1 Set Model PF-DC66
1.2 Prime at 50HZ, 40℃ ambient 48KW 60KVA
1.3 Standby at 50HZ, 40℃ ambient 53KW 66KVA
1.4 Rated Gen-set output 230/400V 220/380V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2650×1050×1650mm
1.7 Weight 1726kg
1.8 Fuel consumption 100% prime load 10.7L/h
1.9 Total heat radiated to ambient 16KW
1.10 Noise Level at 7m 68dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2.1 Engine Brand Cummins
2.2 Engine Model 4BTA3.9-G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 3.9 L
2.13 Engine Prime Power at 1500rpm 50KWm
2.14 Engine Standby Power at 1500rpm 55KWm
2.17 Lubrication oil capacity 11.0L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Fuel type #0 Diesel (Natural temperature)
2.2 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.21 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3.1 Alternator Model UP224E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 86.6A
3.12 Efficiency 0.888
3.13 Insulation class H
3.14 Protection class IP23


The details of Cummins diesel generator set:



Standby 66kva Prime 60Kva Waterproof Generator Set With Soundproof Canopy 0



Cummins engines: All brand new, original Cummins.


Standby 66kva Prime 60Kva Waterproof Generator Set With Soundproof Canopy 1




1.    Power Range: 20kw - 400kw for DCEC Cummins

2.    Engine: Original Cummins engine

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized




1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.


Competitive Advantage:

1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.
