250kw 313kva CCEC Cummins Diesel Generator With ABB / SOCOMEC ATS 50hz

Place of Origin Jiangsu, China
Brand Name PowerFriend
Certification ISO, CE
Model Number PF-CC344S
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywooden box or plastic poly
Delivery Time 25-30 days after advance payment
Payment Terms T/T or L/C
Supply Ability 500pcs/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power(Prime/Standby) 250KW/313KVA Frequency 50HZ
Current 452A Voltage 230/400V
Engine DCEC/CCEC/USA Cummins Alternator STAMFORD /HCI444ES
Controller Smartgen6120 MCCB ABB/Delixi
Warranty One Year Or 1000hrs Fuel Tank 8 Hours Contunuous Running
High Light

emergency diesel generator

,

silent diesel generator set

Leave a Message
Product Description

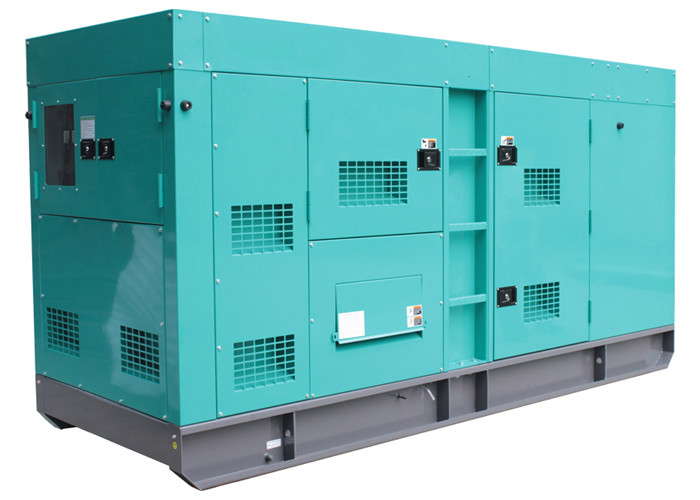

250kw 313kva CCEC Cummins silent Diesel Generators with ABB / SOCOMEC ATS 50hz





Specifications:



Genset Model PF-CC344S
Prime Power 250KW/313KVA
Standby Power 275KW/344KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 452A
Genset Structure SILENT
Dimension 4200×1400×2000mm
Net Weight 3800KG
Noise level 80dB at 7 meters
Fuel Tank Capacity 520L
Engine Model NTA855-G1B
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 140mm × 152mm
Displacement 14L
12-hour Power(kw) 380KW/1500
Fuel Consumption L/H 64.7L/H
Compression Ratio 14:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI444ES
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator




250kw 313kva CCEC Cummins Diesel Generator With ABB / SOCOMEC ATS 50hz 0

Description:

1.    Power Prime: 250KW/313KVA

2.    Engine: DCEC Cummins, CCEC Cummins, USA Cummins

3.    Alternator: STAMFORD /HCI444ES

4.    Controller:  Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Soundproof type

7.    Color: Can be customized

Applications:

1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.

7. Rental field.



Competitive Advantage:

1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.



We have many Cummins engines in stock:

250kw 313kva CCEC Cummins Diesel Generator With ABB / SOCOMEC ATS 50hz 1
