Home /Products/Diesel Generator Set/Silent Type 400kw 500kva Diesel Power Generator Set CE / ISO9001 Certificate

Silent Type 400kw 500kva Diesel Power Generator Set CE / ISO9001 Certificate

1 set
MOQ
38680-41115
Price
Silent Type 400kw 500kva Diesel Power Generator Set CE / ISO9001 Certificate
Features Gallery Product Description Request A Quote
Features
Specifications
Model: GP550CCS
Certificate: CE/ISO9001
Power Factor: 0.8
Starting Method: Mechanical Or Electronic
Color: Depend
Engine Speed (rpm): 1500
Warranty: 1 Year/1000 Hours
Engine Model: KTA19-G4
Alternator Model: STAMFORD /HCI544D
Options: ATS/ Water Heater
High Light:

emergency diesel generator

,

silent diesel generator set
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO9001/ CE /
Model Number: GP550CCS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 25 work days
Supply Ability: 250 sets / Month
Product Description



Silent Type 400kw 500kva Diesel Power Generator Set CE / ISO9001 Certificate



1. SPECIFICATIONS OF GEN-SET
Set Model GP550CCS
Prime at 50HZ, 40℃ ambient 400KW 500KVA
Standby at 50HZ, 40℃ ambient 440KW 550KVA
Rated Gen-set output 230/400V 50Hz
Rated Relative humidity ≤ 60 %
Dimension (L×W×H) 3900×1400×2150mm
Weight 3900kg
Fuel consumption 100% prime load 64.7L/h
Total heat radiated to ambient 70KW
Noise Level at 7m (Normal/Super) 80dB
Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength steel basic frame,

anti vibration instrument between the engine

and basic frame, cooling fan have protecting cap,

control cabinet and circuit breaker installed

on Gen-set.
Control system (Optional)

Basic control panel or Advanced control

panel with automatically start-up function

and other function.
2. SPECIFICATIONS OF ENGINE
Engine Brand Cummins
Engine Model KTA19-G4
Governor/Class Electrical
Cylinder NO. 6
Engine build Line
Fuel spray pattern PT direct injection
start-up method 24V, electric
Aspiration Turbocharged/Aftercooled
Cooling mode Radiator cooled (enclose water)
Bore and stroke 159×159 mm
Compression ratio 14.5:1
Displacement 19L
Engine Prime Power at 1500rpm 448KWm
Engine Standby Power at 1500rpm 504KWm
Battery capacity 127A/hr
Starting/Min temperature 7℃
Lubrication oil capacity 38.6L
Coolant capacity - radiator and engine (40℃) 70L
Exhaust temp - full load prime 512℃
Exhaust gas flow - full load prime 3723m3/h
Exhaust gas back pressure max 76mmHg
Air flow - radiator (40℃ ambient) 7.2 m 3/s
Pusher fan head (duct allowance) 40℃ 13mmH 2O
Air intake - engine- full load prime 1428m3/h
Standard Air intake temp 25℃
Fuel type #0 Diesel (Natural temperature)
Filter system

Adopt whole changeable lubricating

oil, fuel filter and air filter
Exhaust system

Adopt industrial high efficiency muffler

and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
Alternator Model HCI544D
Alternator Type A.C. Synchronous
Rated Voltage 230/400V
Rated Frequency 50HZ
Rated speed 1500 RPM
Voltage regulation mode Auto
Alternator voltage regulation ±0.5%
Exciting mode Brushless self exciting
Power factor 0.8 (lagging)
Phase & wires 3 phase 12 wires
Rated currency 505.2A
Efficiency 0.935
Insulation class H
Protection class IP23
Single load step to NFPA110 100%
Standards IEC34-1
Max. Ambient Temperature 40℃
Min. Ambient Temperature - 20℃
Max. altitude 1000m
Weight 995.5kg

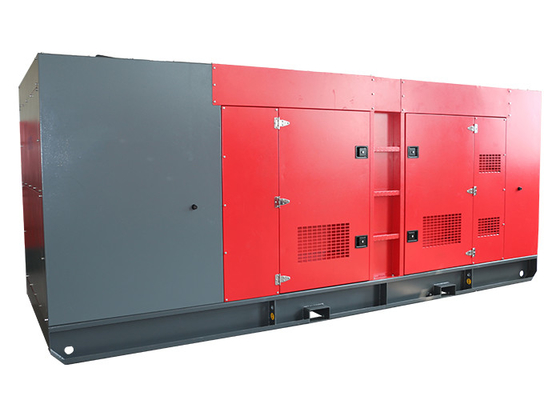

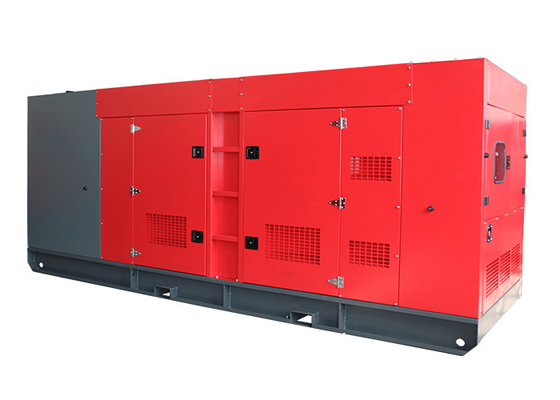

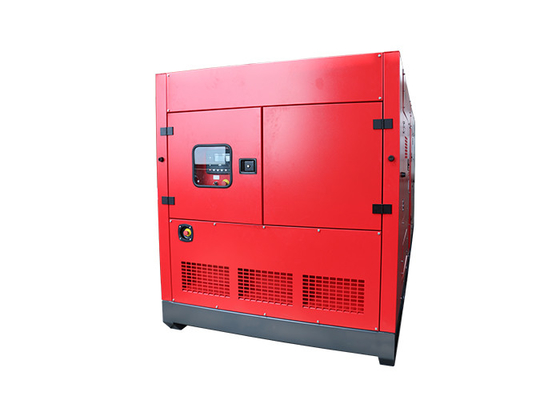

SILENT POWER GENERATOR SET 500KVA 400KW PHOTOS:


Silent Type 400kw 500kva Diesel Power Generator Set CE / ISO9001 Certificate 0

Company Information



Wuxi Gpro Power Solution Co., Ltd is focus on power generator products and service in China.



Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm

Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm
