375kva 300kw Rain Proof Low Rpm Genset Diesel Generator Set Water Cooling

  • 375kva 300kw Rain Proof Low Rpm Genset Diesel Generator Set Water Cooling
  • 375kva 300kw Rain Proof Low Rpm Genset Diesel Generator Set Water Cooling
Place of Origin WUXI, CHINA
Brand Name POWER FRIEND
Certification ISO9001/ CE /
Model Number PF-FW413
Minimum Order Quantity 1 set
Price 20929-25949
Packaging Details poly wooden case or plastic poly
Delivery Time 25 work days
Supply Ability 250 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model PF-FW413 Certificate CE/ISO9001
Power Factor 0.8 Starting Method Mechanical Or Electronic
Color Depend Engine Speed (rpm) 1500
Warranty 1 Year/1000 Hours Engine Model CA6DN1-45D
Alternator Model Stamford/HCI444FS Options ATS/ Water Heater
High Light

emergency diesel generator

,

silent diesel generator set
Leave a Message
Product Description

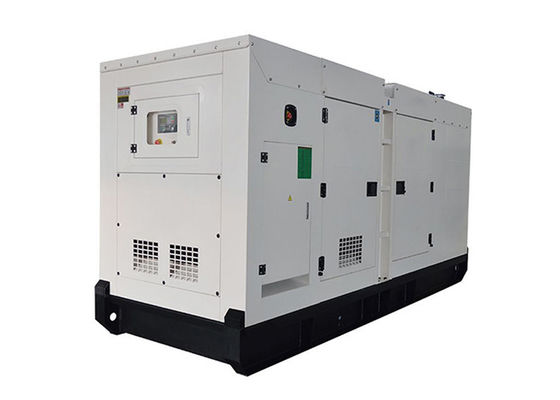

375kva 300kw rain proof low rpm silent water cooling generator set


Product Description



1. SPECIFICATIONS OF GEN-SET
1.1Set ModelPF-FW413
1.2Prime at 50HZ, 40℃ ambient300KW 375KVA
1.3Standby at 50HZ, 40℃ ambient330KW 413KVA
1.4Rated Gen-set output230/400V 50Hz
1.5Rated Relative humidity≤ 60 %
1.6Dimension (L×W×H)Open: 3200*1250*1900,
Silent: 4300*1500*1850
1.7WeightOpen: 3200kg, Silent: 4200kg
1.8Fuel consumption 100% prime load79.5L/H
1.9Structure of Gen-setThe Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.10Control system (Optional)Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1Engine BrandFAWDE
2.2Engine ModelCA6DN1-45D
2.3Governor/ClassECU
2.4Cylinder NO.6
2.5Engine buildLine
2.6Emission compliantEuro III
2.7start-up method24V, electric
2.8Air intake typeTurbocharged&intercooling
2.9Cooling modeWater cooling
2.10Bore and stroke131×155 mm
2.11Compression ratio18:01
2.12Displacement12.53
2.13Engine Prime Power at 1500rpm332KWm
2.14Engine Standby Power at 1500rpm365KWm
2.15Lubrication oil capacity42L
2.16Oil consumption0.06
2.17Dry weight of base1230Kg
2.18Dry weight of Gen Pac1495Kg
2.19Overall dimension(G.P)2300×1120×1580(mm)
2.20Overall dimension(base)/
2.2127℃ air consumption ( m³/ min)22.7
2.22Fuel type#0 Diesel (Natural temperature)
2.23Filter systemAdopt whole changeable lubricating oil, fuel filter and air filter
2.24Exhaust systemAdopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1Alternator ModelStamford/HCI444FS
3.2Alternator TypeA.C. Synchronous
3.3Rated Voltage230/400V
3.4Rated Frequency50HZ
3.5Rated speed1500 RPM
3.6Voltage regulation modeAuto
3.7Alternator voltage regulation±0.5%
3.8Exciting modeBrushless self exciting
3.9Power factor0.8 (lagging)
3.10Phase & wires3 phase 12 wires
3.11Rated currency548.5A
3.12Efficiency0.937
3.13Insulation classH
3.14Protection classIP23
3.15Single load step to NFPA110100%
3.16StandardsIEC34-1
3.17Max. Ambient Temperature40℃
3.18Min. Ambient Temperature- 20℃
3.19Max. altitude1000m
3.20Weight1183kg

cc550-6cc550-5



Company Information


JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.

Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm
Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm
