ISO9001 500KW 625KVA Doosan Silent Generator Set / 10 Cylinder Water Cooled Silent Dg Set
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rate | 625kva | Frequency | 50HZ |
|---|---|---|---|
| Engine Model | DP180LB | Voltage | 230/400V |
| Alternator | Option | Controller | Smartgen / DeepSea |
| MCCB | Delixi /ABB | Warranty | 1 Year Or 1000 Hours |
| Protection Class | IP23 | Displacement | 8.7L |
| High Light | power generating set,silent diesel generators |
||
Product Description

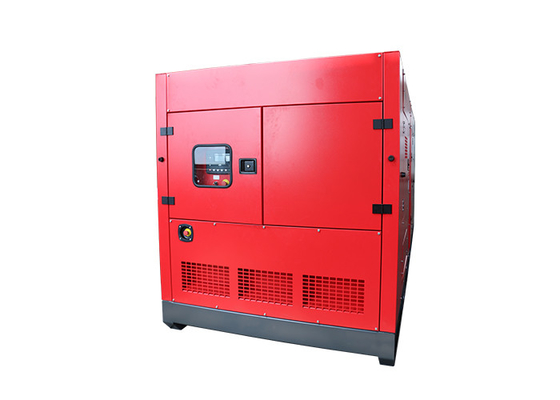

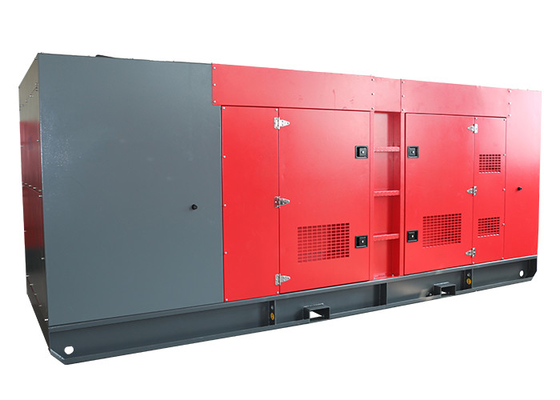

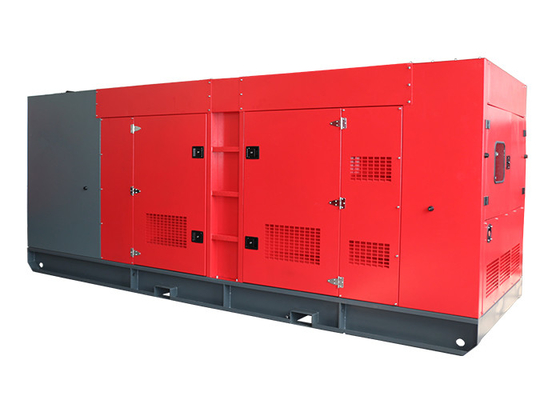

CE ISO9001 500KW 625KVA 10 cylinder water cooled silent generator set
Product Description
1. Engine low fuel consumption.
2. All orignal engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
| Genset Model | PF-DS688S |
| Prime Power | 500KW/625KVA |
| Standby Power | 550KW/688KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 902A |
| Genset Structure | SILENT |
| Dimension | 5000×1800×2450mm |
| Net Weight | 5500KG |
| Noise level | 83dB at 7 meters |
| Fuel Tank Capacity | 800L |
| Engine Model | DP180LB |
| Engine Features | 10-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke | 128mm × 142mm |
| Displacement | 18.3L |
| MAX Power(kw) | 540KW/1500 |
| Fuel Consumption L/H | 136.4L/H |
| Compression Ratio | 15:01 |
| Governor type | ELECTIC |
| Alternator Model | STAMFORD /HCI544FS |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
| Packaging & Shipping |
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
FAQ
| FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
