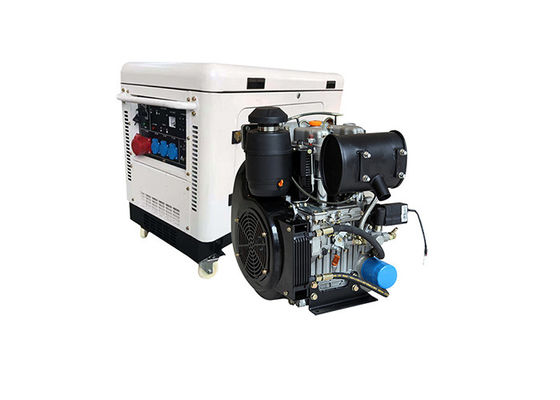

292F Two Cylinder 4-Stroke High Performance Diesel Engines Air Cooled 20HP 15KW

Place of Origin China(Mainland)
Brand Name PowerFriend
Certification ISO9001/ISO14001/CE/PVOC
Model Number PDE292F
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details poly wooden case or plastic poly
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 500 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number PDE292F Product Type Two Cylinders, 4-stroke, Air-cooled
Fuel Diesel Rated Output (kw) (Hp) 14(19.0)/3000 15.5(21.0)/36000
Max Output (kw) (Hp) 15(20.5)/3000 16(22.0)/36000 Warranty 1 Year Or 1000 Hours
Rated Speed 3000rpm/3600rpm Certificates CE,ISO9001
Overall Dimension (LxWxH)MM 420 X 480 X 590 / 575 X 480 X 590(with Fuel Tank) N.W / G.W (kg) 78
High Light

industrial diesel engines

,

air cooled diesel engine

Leave a Message
Product Description

292F Two Cylinder 4-stroke Air Cooled 20HP 15KW Diesel Engine Price

Model PDE292F
Type Two cylinders, 4-stroke, air-cooled
Bore x stroke (mm)(in) 92 x 75 (3.62 x 2.95)
Displacement (L) (cc) 0.997(997)
Compression ratio 19.5:1
Rated speed (rpm) 3000                                3600
Rated output (kw) (Hp) 14(19.0) 15.5(21.0)
Max output (kw) (Hp) 15(20.5) 16(22.0)
Fuel consumption (L · h) ≤ 3.8
Fuel tank capacity (L) 8
Lube oil capacity (L) 2.5
Starting system Electric start
Output shaft crankshaft/Flywheel
Fuel trademark 0#(summer) -10(winter)diesel
Lube oil type CD grade or SAE 10W-30 15W-40
Overall dimension (LxWxH)MM 420 x 480 x 590
/ 575 x 480 x 590(with fuel tank)
N.W / G.W (kg) 78

292F Two Cylinder 4-Stroke High Performance Diesel Engines Air Cooled 20HP 15KW 0

292F Two Cylinder 4-Stroke High Performance Diesel Engines Air Cooled 20HP 15KW 1
Factory Environment
292F Two Cylinder 4-Stroke High Performance Diesel Engines Air Cooled 20HP 15KW 2

Description:



Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.



Applications:

  1. for generator sets
  2. for pump groups
  3. for agricultural machinery

Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.



      Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

      Delivery: 25 days after we get the down payment.

      Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000            running hours from date of commissioning whicheverdate occurs the sooner.



Transation Process:
1. Buyer place order after confirming the details.
2. Seller issue the Proforma Invoice.
3. Buyer pay the advance payment base on the bank details on PI.
4. Seller arrange production immediately after receiving the advance payment.
5. Seller send photos of the products and videos of testing to Buyer.
6. Buyer pay the balance payment after checking the photos and videos.
5. Seller arrange the shipment base on Fob/CNF/CIF/DDU, and send photos of packing and shipping.
