House or industrial small diesel engine lower noise for water pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 6.6KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Speed | 3000RPM /3600RPM | Cylinder Type | 1 Cylinder 4-stroke |
| Start Type | Electric / Hand Start | Certificate | ISO9001/CE |
| Warranty | 1 Year Or 1000 Hours | ||
| High Light | four stroke diesel engine,industrial diesel engines |
||
Product Description
House or industrial small diesel engine lower noise for water pump
SPECIFICATION:
| Engine | Engine type | 188FA | 192FA |
| Structure type |
Single cylinder , in lined 4 stroke, air cooled direct injection |
Single cylinder , in lined 4 stroke, air cooled direct injection |
|
| Bore * stroke mm | 88X75 | 92x75 | |
| Displacement ml | 456 | 499 | |
| Compression ratio | 20:01 | 20:01 | |
| Rated output(kw/rpm) | 7.5/3600 | 8.2/3600 | |
|
Max Rotate Speed empty loading r/min |
≤ rated output speed 108% | ||
|
Lowest Rotate speed empty loading r/min |
≤ 1300 | ||
| Oil comsumption | ≤ 4.08 | ||
| Lubrication system | pressure splashed | pressure splashed | |
| Lue oil brand |
Above CD SAE 10W 30 15W 40 |
Above CD SAE 10W 30 15W 40 |
|
| Staring system | Recoil /Electric starter | Recoil /Electric starter | |
| Lubricating system | force-feed and splash lubrication | ||
| Starting motor capacity | N/M | 12V 0.8kw | |
| Charging generator capacity | N/M | 12V 3A | |
| Battery capacity | N/M | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 320 | 320 | |
| Fuel type | Diesel 0# or 10# 20# | Diesel 0# or 10# 20# | |
| Diemension mm | 420x440x495 mm | 420x440x497 | |
| Net Weight kg | ≤ 53 | ≤ 55 | |
Description:
1. Air cooled diesel engine 188FAE
2. Single cylinder , 4 stroke
3. Electric starter and hand starter
Applications:
1. Use for portable generators
2. Use for water pump
3. Repair old generators
4. House or industrial
Competitive Advantage:
1. Lower consumption , lower noise , lower pollution
2 . Higher efficiency and enviromental friendly
3. Strict testing system, stable voltage and frequency
4. Secured ground terminal
5. Stronger automatic startup system , starting within only 1-5S
6. Smart in size , delicate in style , longer service life
7. Very diversified and customerized choices.

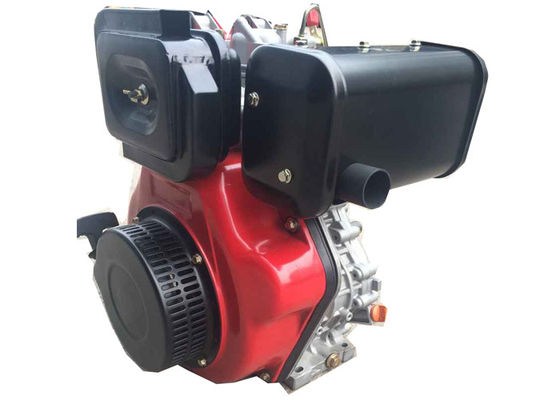

Air cooled engines photos:
