High performance four stroke diesel engine Ricardo Kofo engine 10kva to 200kva
RICARDO KOFO is a famous brand in China.
The engine suitable generators power 10kva to 200kva
SPECIFICATION-- 4 Cylinder engines:
| Model | K4100D | K4100ZD | 4105ZD |
| Rated Power/Speed(kw/r/min) | 30.1/1500 | 40.2/1500 | 56/1500 |
| Max.Power(kw/r/min) | 36/1500 | 48/1500 | 65/1500 |
| The power of Fan (kw) | 1 | 1.5 | 2 |
| Frequency(Hz) | 50 | 50 | 50 |
| Compression ratio | 0.709027778 | 0.667361111 | 0.667361111 |
| Bore*Stroke(mm) | 100*125 | 100*125 | 105*125 |
| Total displacement(L) | 4 | 4 | 4.5 |
| Specific fuel consumption(g/kw/h) | 232 | 232 | 239 |
| Specific oil consumption(g/kw/h) | ≤1.63 | ≤1.63 | ≤1.63 |
| Mean effective pressure(kpa) | 712 | 950 | 1034 |
| Exhaust volume (m3/h)) | 550 | 758 | 838 |
| Lubricating oil capacity(L) | 12 | 13 | 13 |
| Cooling water capacity(L) | 16 | 16 | 16 |
| Exhaust Temperature(C) | ≤600 | ≤600 | ≤600 |
| Starting Motor(v/kw) | 12/3.7 | 12/3.7 | 12/3.7 |
| Overall dimension(L*W*H)(mm) | 860*675*925 | 860*690*1065 | 930*620*1120 |
| Net Weight(kg) | 400 | 420 | 450 |
| Fly roulette specifications | SAE NO.3 | SAE NO.3 | SAE NO.3 |
| Flywheel size | SAE NO.11.5 | SAE NO.11.5 | SAE NO.11.5 |
Engines specification--6 cylinder
| Model | 6105ZD | 6105AZLD | 6105IZLD | 6113AZLD | 6126ZLD |
| Rated Power(kw/r/min) | 90/1500 | 110/1500 | 132/1500 | 175/1500 | 223/1500 |
| Max.Power(kw/r/min) | 105/1500 | 120/1500 | 142/1500 | 185/1500 | 245/1500 |
| The power of Fan (kw) | 2.6 | 3.6 | 4.5 | 5.3 | 10.2 |
| Frequency(Hz) | 50 | 50 | 50 | 50 | 50 |
| Compression ratio | 0.667361111 | 0.667361111 | 0.667361111 | 0.625694444 | 0.667361111 |
| Bore*Stroke(mm) | 105*125 | 105*135 | 105*135 | 113*130 | 126*130 |
| Total displacement(L) | 6.5 | 7 | 7 | 7.82 | 9.726 |
| Specific fuel consumption(g/kw/h) | 231 | 224 | 224 | 210 | 210 |
| Specific oil consumption(g/kw/h) | ≤1.63 | ≤1.63 | ≤1.63 | ≤1.63 | ≤1.68 |
| Mean effective pressure(kpa) | 1350 | 1426 | 1525 | 1420 | 2076 |
| Exhaust volume (m3/h)) | 1110 | 1218 | 1524 | 1782 | 2216 |
| Lubricating oil capacity(L) | 16 | 16 | 16 | 18 | 19 |
| Cooling water capacity(L) | 23 | 25 | 25 | 28 | 28 |
| Exhaust Temperature(C) | ≤600 | ≤600 | ≤600 | ≤550 | ≤550 |
| Starting Motor(v/kw) | 24/5.2 | 24/5.2 | 24/5.2 | 24/5.2 | 24/7.5 |
| Overall dimension(L*W*H)(mm) | 1265* | 1285* | 1285* | 1390* | 1525* |
| 765*1275 | 820*1275 | 820*1275 | 825*1280 | 660*1020 | |
| Net Weight(kg) | 620 | 630 | 630 | 670 | 850 |
| Fly roulette specifications | SAE NO.3 | SAE NO.3 | SAE NO.3 | SAE NO.2 | SAE NO.1 |
| Flywheel size | SAE NO.11.5 | SAE NO.11.5 | SAE NO.11.5 | SAE NO.11.5 | SAE NO.14 |
Description:
1. 4 cylinder and 6 cylinder diesel engines
2. Power from 10kva to 200kva
3. 4 stroke , mechanical and eletric start
Applications:
1. Use for generators
2. Use for water pump
3. Repair old generators
Competitive Advantage:
1. Delivery time only 10 days
2. Cheap price
3. Small size

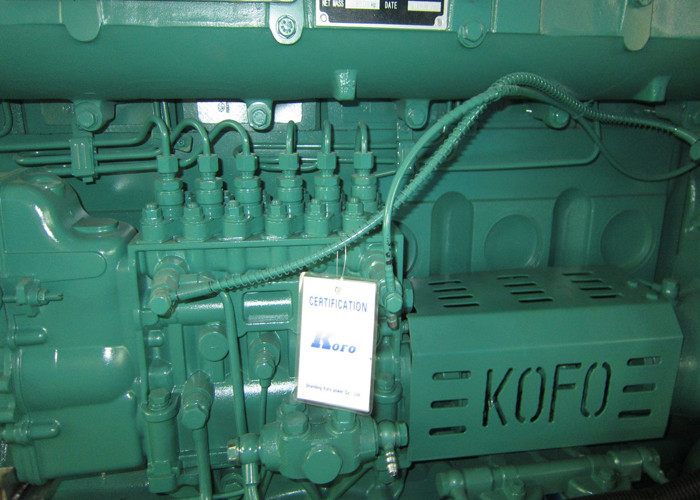

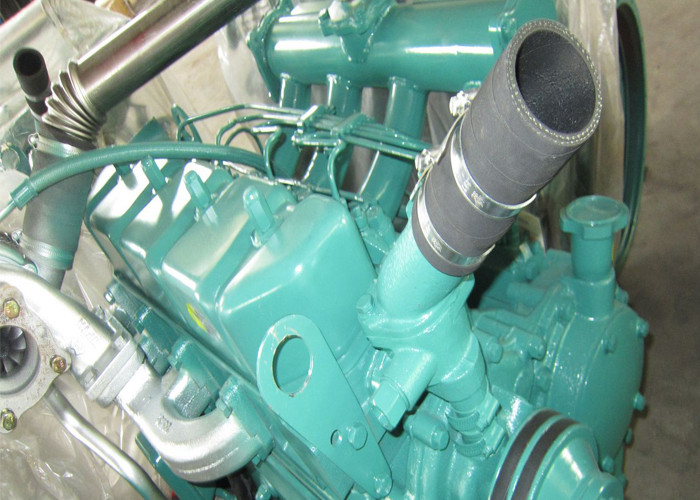

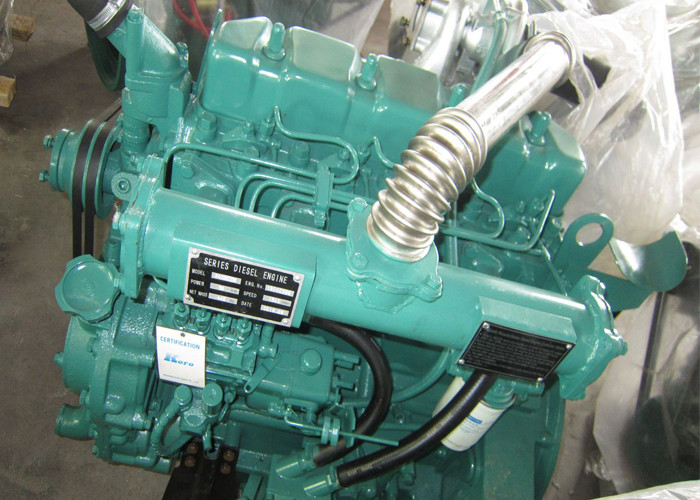

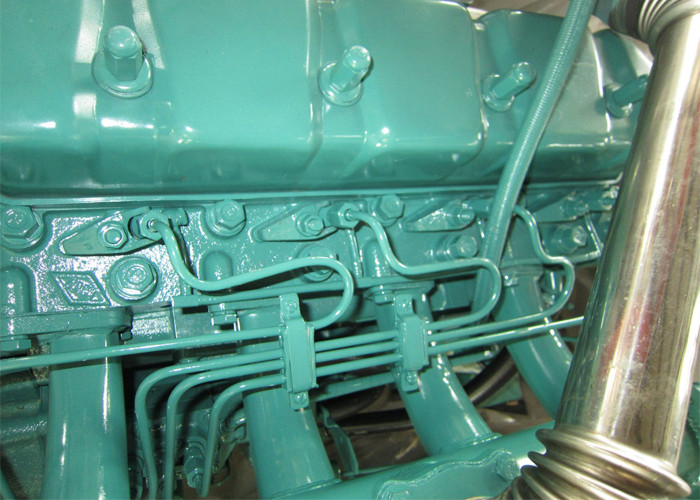

Engine photos:
