Start Single Cylinder 3.6kw High Performance Engines Reduce Fuel Consumption For Sale

Start Single Cylinder 3.6kw High Performance Engines Reduce Fuel Consumption For Sale
Features Gallery Product Description Request A Quote
Engine Type: Air-cooled 4-stroke
Power(Prime/Standby): 3.6kw(50hz) /3.9kw(60kz)
Frequency: 50/60HZ
Speed: 3000rpm/3600rpm
Governor Type: Mechanical / Electronic
Continuous Running Hours: 3.0h(50hz)/2.5h(60hz)
Warranty: 1 Year Or 1000 Hours
Certificate: ISO9001/CE
Basic Infomation
Place of Origin: China
Certification: ISO/TS16949 /ISO10012/ ISO14001/ISO18000
Model Number: 173F
Payment & Shipping Terms
Packaging Details: Poly wooden case
Delivery Time: 7 days
Supply Ability: 1000 sets / Week
Product Description

Start Single Cylinder 3.6kw Air Cooled Engines Reduce Fuel Consumption For Sale




Model PD173F
Type Single cylinder,vertical,air-cooled, 4-strok
Borexstroke(mm) 70*55
Displacement(ml) 247
Compression Ratio 19:01
Rated speed(rpm) 3000 3600
Rated output(kw) 3.6 3.9
Max output(kw) 3.9 4.2
Fuel consumption(g/kw.h) <295
Starting system Recoil start or Electric start
Fuel tank capacity(L) 2.5
Lube oil capacity(L) 0.75
Fuel type 0#(summer), -10#(winter)diesel
Lube oil type SAE 10W-30
Continuous running time(h) 3 2.5
Package(L*W*H) 41.5*38.5*47cm(16.3*15.2*18.5)(in)
N.W/G.W 25/30kg(55.12/66.14)(ib)


     Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.

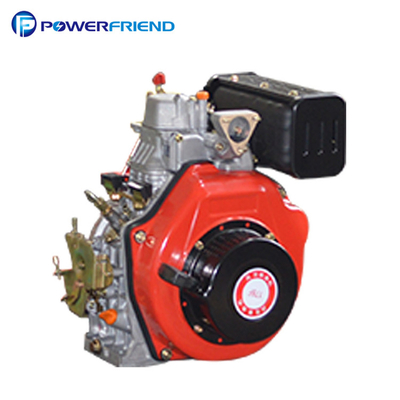

Air cooled engines photos:

Start Single Cylinder 3.6kw High Performance Engines Reduce Fuel Consumption For Sale 0

Start Single Cylinder 3.6kw High Performance Engines Reduce Fuel Consumption For Sale 1


Drive system--

The drive gear design is incorporated into diesel engine which will greatly reduce vibration and noise.

Low noise--

The high efficiency muffler system greatly lowers exhaust noise. With the advanced design air cleaner system, intake noise is reduced to a low level . The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels.

Ease operation--

Low vibration and noise makes operators feel comfortable even after long hours of operation. Two kinds of easy starting system: recoil and electric. light weight alloys used for main engine parts. A small-sized engine body built for application in a strict environment.

Fuel system--

Fuel systems assure high effciency operation. The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.




1. Air cooled diesel engine

2. Single cylinder

3. Electric starter and hand starter





1.for generator sets
2.for tractor
3.for grass cutter
4.for water pump sets
5.for smart boat


Competitive Advantage:


1. Low fuel consumption


Adopted european patent combustion chamber which can reduce fuel consumption , emission and noise, meanwhile raise engine power


2. Stability & reliability


Stable and reliable engine performance, good market feedback


3. Low cost


Produce engines by ourself , we have a workshop special produce the engine body , each month over 10000 units. So that can controler strict quality , and keep low cost.
