Name: 625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption
Brand: GPRO
SKU: GP688CCS
Rating: 4.8 (122 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Genertor Prime Power: 500KW 625KVA

Generator Standby Power: 550KW 688KVA

500KW Generator Engine: KTAA19-G6A

500kw Generator Alternator: STAMFORD / MECC

500KW Generator Controller: Stamford Type, Brushless, 100% Copper

Controller: Deepsea/ ComAp

Generator 500kw Fuel Tank: 8 Hours When 100% Loading

ATS: Socomec Aiskai

Warranty: 1 Year Or 1000 Hours

Certificates: CE,ISO9001

High Light:

emergency diesel generator

silent diesel generator set

Basic Infomation

Place of Origin: China（Mainland）

Brand Name: GPRO

Certification: ISO9001/ISO14001

Model Number: GP688CCS

Payment & Shipping Terms

Packaging Details: poly wooden case or plastic poly

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 500 sets / Month

Gallery

625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption

Product Description

625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption

1. SPECIFICATIONS OF GEN-SET
1.1	Set Model	GP688CCS
1.2	Prime at 50HZ, 40℃ ambient	500kw/625kva
1.3	Standby at 50HZ, 40℃ ambient	550KW 717KVA
1.4	Rated Gen-set output	230/400V 50Hz
1.5	Rated Relative humidity	≤ 60 %
1.6	Dimension (L×W×H)	4900×1650×2550mm
1.7	Weight	5327kg
1.8	Fuel consumption 100% prime load	93.3L/h
1.9	Total heat radiated to ambient	79KW
1.10	Noise Level at 7m (Normal/Super)	80dB
1.11	Structure of Gen-set	The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12	Control system (Optional)	Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1	Engine Brand
2.2	Engine Model	KTAA19-G6A
2.3	Governor/Class	Electrical
2.4	Cylinder NO.	6
2.5	Engine build	Line
2.6	Fuel spray pattern	PT direct injection
2.7	start-up method	24V, electric
2.8	Aspiration	Turbocharged/Aftercooled
2.9	Cooling mode	Radiator cooled (enclose water)
2.10	Bore and stroke	159×159mm
2.11	Compression ratio	14.5:1
2.12	Displacement	19L
2.13	Engine Prime Power at 1500rpm	470KWm
2.14	Engine Standby Power at 1500rpm	555KWm
2.15	Battery capacity	190A/hr
2.16	Starting/Min temperature	7℃
2.17	Lubrication oil capacity	50L
2.18	Coolant capacity - radiator and engine (40℃)	91L
2.19	Exhaust temp - full load prime	524℃
2.20	Exhaust gas flow - full load prime	4842m3/h
2.21	Exhaust gas back pressure max	76mmHg
2.22	Air flow - radiator (40℃ ambient)	13.7 m 3/s
2.23	Pusher fan head (duct allowance) 40℃	13mmH 2O
2.24	Air intake - engine- full load prime	1750m3/h
2.25	Standard Air intake temp	25℃
2.26	Fuel type	#0 Diesel (Natural temperature)
2.27	Filter system	Adopt whole changeable lubricating oil, fuel filter and air filter
2.28	Exhaust system	Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1	Alternator Model	HCI544FS
3.2	Alternator Type	A.C. Synchronous
3.3	Rated Voltage	230/400V
3.4	Rated Frequency	50HZ
3.5	Rated speed	1500 RPM
3.6	Voltage regulation mode	Auto
3.7	Alternator voltage regulation	±0.5%
3.8	Exciting mode	Brushless self exciting
3.9	Power factor	0.8 (lagging)
3.10	Phase & wires	3 phase 12 wires
3.11	Rated currency	721.7A
3.12	Efficiency	0.938
3.13	Insulation class	H
3.14	Protection class	IP23
3.15	Single load step to NFPA110	100%
3.16	Standards	IEC34-1
3.17	Max. Ambient Temperature	40℃
3.18	Min. Ambient Temperature	- 20℃
3.19	Max. altitude	1000m
3.20	Weight	1250kg

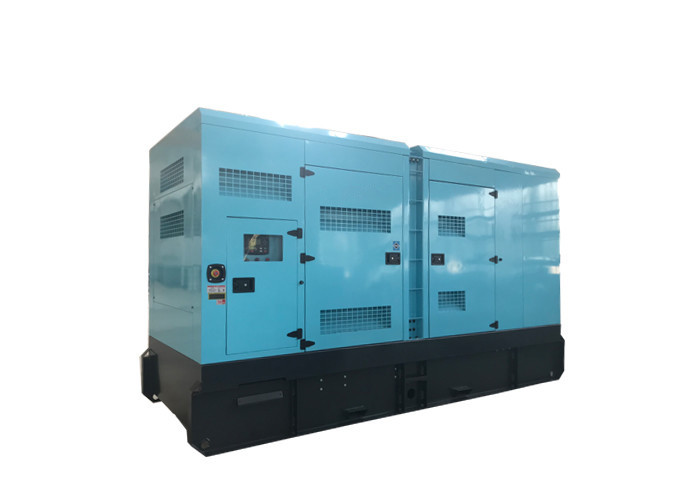

625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption 0

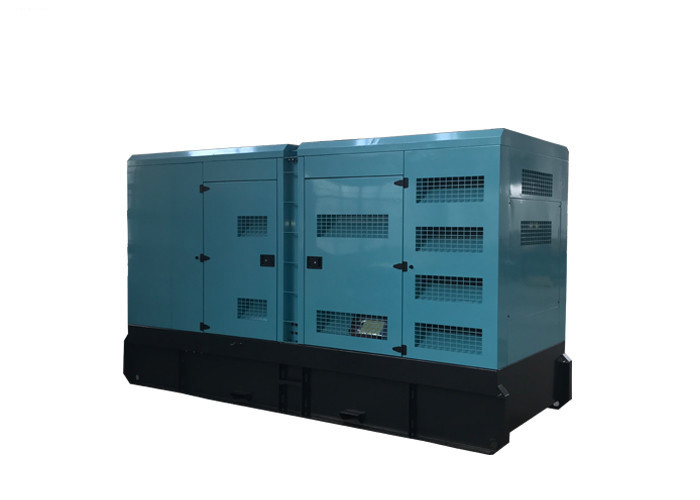

625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption 1

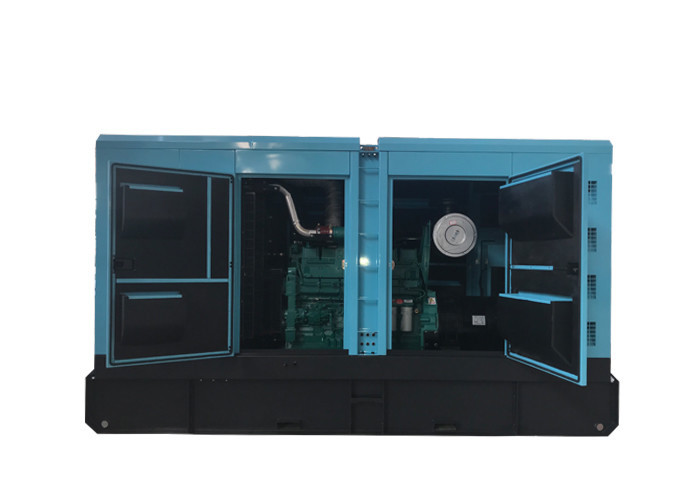

625kva 500kw Low Noise Diesel Generator Set Canopy Low Fuel Consumption 2
Factory Environment

Description:

Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.

Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.

Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.
