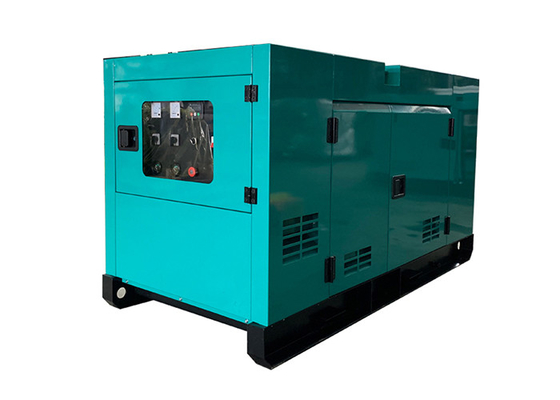

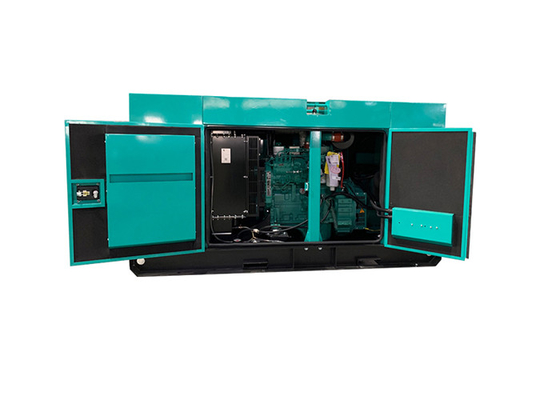

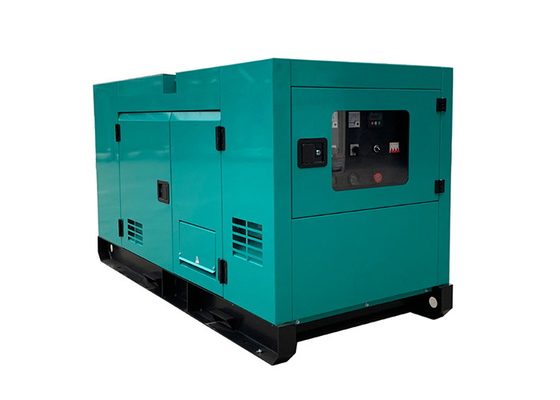

16KW 20KVA Chinese Engine Water Cooled Diesel Generator Single Phase Or Three Phase

1 set
16KW 20KVA Chinese Engine Water Cooled Diesel Generator Single Phase Or Three Phase
Features Gallery Product Description Request A Quote
Genset Model: GP22FWS
Prime Power: 16KW 20KVA
Standby Power: 16KW 20KVA
Cooling Mode: Water Cooling
Engine Brand: FAWDE
Engine Model: 4DW91-29D
Controller: Deepsea/ ComAp/ Smartgen
Alternator Brand: Stamford Type, Brushless, 100% Copper
Warranty: 1 Year Or 1000 Hours
Certificates: CE,ISO9001
High Light:

emergency diesel generator


silent diesel generator set

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: GPRO
Certification: ISO9001/ISO14001
Model Number: GP22FWS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description


16KW 20KVA Chinese Engine Water Cooled Diesel Generator Single Phase Or Three Phase

Product describition

Genset Genset Model GP22FWS
Prime at 50HZ, 40℃ ambient 16KW 20KVA
Standby at 50HZ, 40℃ ambient 16KW 20KVA
Rated Gen-set output 230/400V 50Hz
Dimension (L×W×H)mm Open: 1450*650*1050,
Silent: 2000*940*1100
Weight Open: 480kg, Silent: 800kg
Fuel consumption 100% prime load 4.4l/h
Rated currency 28A
Circuit Breaker Delixi/CHINT or Customized
Base fuel tank At least for 8-hour contunuous running
Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only) 65
Engine Engine Brand FAWDE
Engine Model 4DW91-29D
Governor/Class Mechanical or Electronic
Cylinder NO. & Build 4
Cooling mode Water Cooling
Bore and stroke 90×100 mm
Compression ratio 17:01
Displacement 2.54
Engine Prime Power at 1500rpm 21KWm
Engine Standby Power at 1500rpm 23KWm
Alternator Alternator Brand Stamford type, brushless, 100% copper
Insulation class H
Protection class IP23




16KW 20KVA Chinese Engine Water Cooled Diesel Generator Single Phase Or Three Phase 0

16KW 20KVA Chinese Engine Water Cooled Diesel Generator Single Phase Or Three Phase 1
Factory Environment



Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.


Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.


Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.

package-big generator.jpg


Transation Process:
1. Buyer place order after confirming the details.
2. Seller issue the Proforma Invoice.
3. Buyer pay the advance payment base on the bank details on PI.
4. Seller arrange production immediately after receiving the advance payment.
5. Seller send photos of the products and videos of testing to Buyer.
6. Buyer pay the balance payment after checking the photos and videos.
5. Seller arrange the shipment base on Fob/CNF/CIF/DDU, and send photos of packing and shipping.



Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details

Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.

Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?

6: Yes. For mass orders, we can use customer's logo instead of ours.
