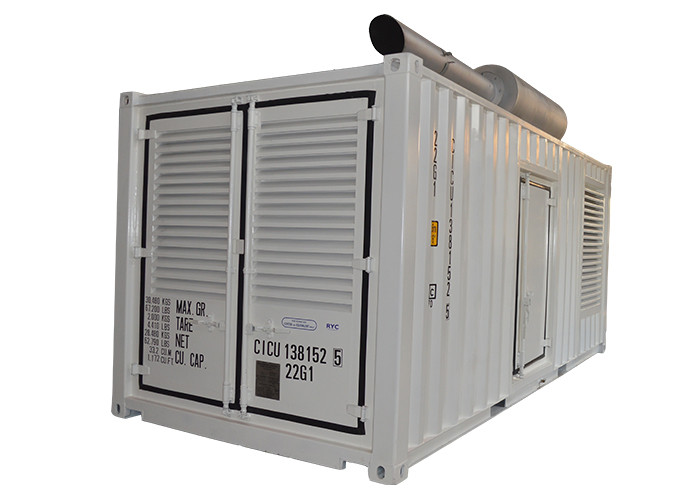

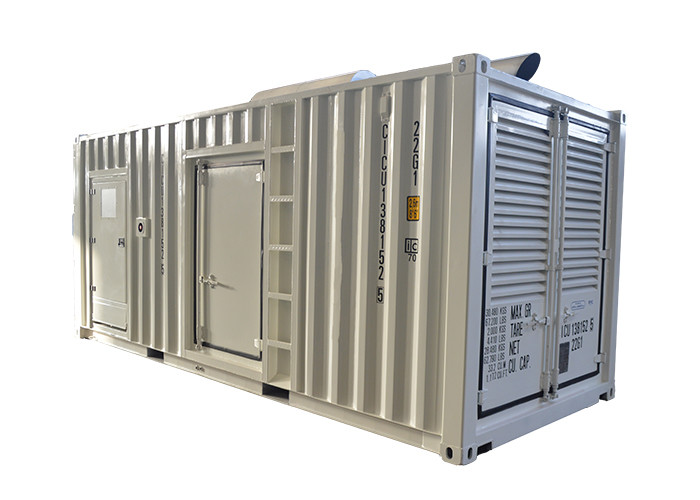

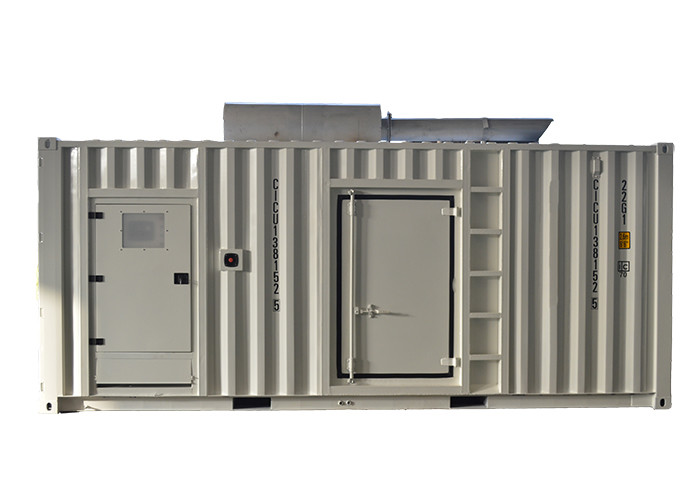

12 Cylinder Water Cooling Container Diesel Generator Set 1200kw 1500kva Low Noise

1 set
MOQ
TBD
Price
12 Cylinder Water Cooling Container Diesel Generator Set 1200kw 1500kva Low Noise
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 1200KW
Frequency: 50HZ／60HZ
Engine Model: KTA50-GS8
Voltage: 230／400
Alternator: STAMFORD /PI734C
Warranty: 1 Year Or 1000 Hours
Phase: Three
Cooling System: Water Cooling
Type: Silent
Fuel Consumption: 311L/H
High Light:

emergency diesel generator

,

silent diesel generator set
Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP-CC1650S
Payment & Shipping Terms
Packaging Details: standard packing
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description


Chinese manufacturer 12 cylinder water cooled 1200kw 1500kva container diesel generator



Product Description





Genset Model GP-CC1650S
Prime Power 1200KW/1500KVA
Standby Power 1320KW/1650KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 2165A
Genset Structure SILENT
Dimension 12192×2435×2896mm
Net Weight 13000KG
Noise level 86dB at 7 meters
Engine Model KTA50-GS8
Engine Features 12-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 50.3L
12 HOURS Power(kw) 1287KW/1500
Fuel Consumption L/H 311L/H
Compression Ratio 14.9:1
Governor type ELECTIC
Alternator Model STAMFORD /PI734C
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator
