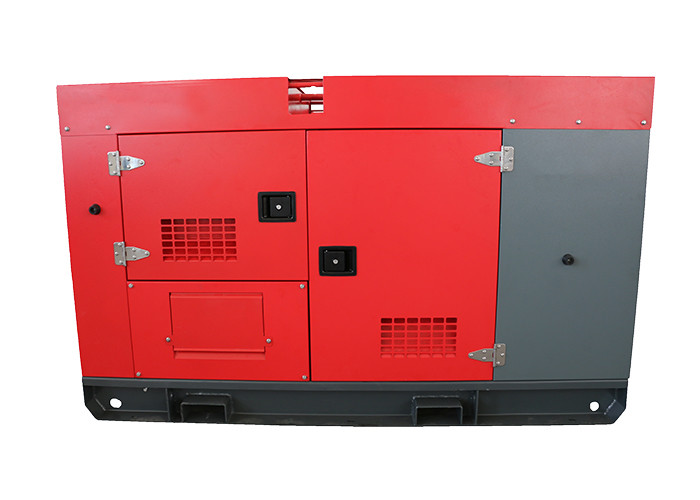

3 Phase Electric Start Diesel Generator Set 20KVA 16KW Water Cooled Longlife

1 set
MOQ
US $2071 - 2794 / Set
Price
3 Phase Electric Start Diesel Generator Set 20KVA 16KW Water Cooled Longlife
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Brand: FAWDE
Prime Power: 16KW 20KVA
Engine Model: 4DW91-29D
Standby Power: 17.6KW 22KVA
Alternator Model: STAMFORD / PI 144D
Rated Voltage: 230/400V
Phase: 3 Phase
Staring System: Mechanical Or Electronic
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

emergency diesel generator

,

silent diesel generator set
Basic Infomation
Place of Origin: China（Mainland）
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP-FW22
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description

3 Phase Electric Start FAWDE Diesel Generator 20KVA 16KW Water Cooled ​



Product describition



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP-FW22
1.2 Prime at 50HZ, 40℃ ambient 16KW 20KVA
1.3 Standby at 50HZ, 40℃ ambient 17.6KW 22KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1450*650*1050,
Silent: 2000*940*1100
1.7 Weight Open: 480kg, Silent: 800kg
1.8 Fuel consumption 100% prime load 4.4l/h
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.10 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW91-29D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 90×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.54
2.13 Engine Prime Power at 1500rpm 21KWm
2.14 Engine Standby Power at 1500rpm 23KWm
2.15 Lubrication oil capacity 8L
2.16 Oil consumption 0.05
2.17 Dry weight of base 220Kg
2.18 Dry weight of Gen Pac 240Kg
2.19 Overall dimension(G.P) 920×610×760(mm)
2.20 Overall dimension(base) 750×555×680(mm)
2.21 27℃ air consumption ( m³/ min) 1.7
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model STAMFORD / PI 144D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5％
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 25.3A
3.12 Efficiency 0.842
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 15℃
3.19 Max. altitude 1000m
3.20 Weight 133Kg



Safe and reliable electricity transmission network solutions !



Optional supply scope:
1.ATS    2. SynchronizationSystem    3. Auto Fuel Pump    4. External daily fuel tank    5.Fuel and Water Separator

6.Trailer   7. Lub Oil Heater                8. Coolant Heater     9. Fuel Drain Pump             10. Silent Canopy



Why choose us:



Description:

Diesel generator is a kind of small power generation equipment. It refers to the power machinery which uses diesel oil as fuel and diesel engine as prime mover to drive the generator to generate electricity. The unit is generally composed of diesel engine, generator, control box, fuel tank, starting and control battery, protection device, emergency cabinet and other components.



Advantage:

1. Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.

2. Full range products, High-Quality and economic models are both available from , we have resources to help our partners to open the market easily.

3.Use high quality components,high test standard to ensure product quality.

4.We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!



Sales Promises:

1.Full range and full line products,high quality production to you.

2.Fast delivery.

3.Warmly and professional sales service.

1.Warrent: One year or 1000 running hours.
