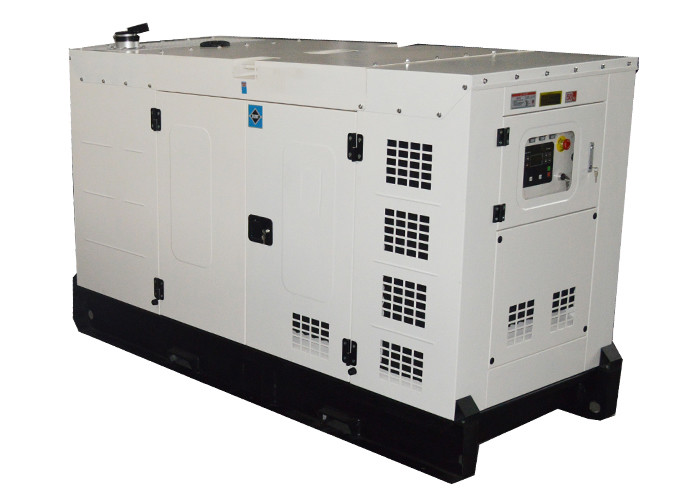

50HZ Pink Silent FAWDE Diesel Generator Water Cooled 40KW 50KVA Genset
Product describition
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP-FW55 |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
40KW 50KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
44KW 55KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
Open: 1800*800*1150,
Silent: 2450*1060*1350 |
| 1.7 |
Weight |
Open: 900kg, Silent: 1300kg |
| 1.8 |
Fuel consumption 100% prime load |
11L/H |
| 1.9 |
Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 |
Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
FAWDE |
| 2.2 |
Engine Model |
4DX22-65D |
| 2.3 |
Governor/Class |
Mechanical or Electronic |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Emission compliant |
Stage II |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Air intake type |
Turbo&Intercooling |
| 2.9 |
Cooling mode |
Water Cooling |
| 2.10 |
Bore and stroke |
102×118 mm |
| 2.11 |
Compression ratio |
17:01 |
| 2.12 |
Displacement |
3.86 |
| 2.13 |
Engine Prime Power at 1500rpm |
48KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
53KWm |
| 2.15 |
Lubrication oil capacity |
13L |
| 2.16 |
Oil consumption |
0.05 |
| 2.17 |
Dry weight of base |
380Kg |
| 2.18 |
Dry weight of Gen Pac |
405Kg |
| 2.19 |
Overall dimension(G.P) |
1480×705×850(mm) |
| 2.2 |
Overall dimension(base) |
810×700×850(mm) |
| 2.21 |
27℃ air consumption ( m³/ min) |
3.9 |
| 2.22 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.23 |
Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 |
Exhaust system |
Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR |
| 3.1 |
Alternator Model |
Stamford/UCI244D |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
72.2A |
| 3.12 |
Efficiency |
88.20% |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1,NEMA1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 15℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
250kg |
Why choose us:
Description:
1.GPRO is devoted to the R&D and manufacturing of diesel generator sets since 2010.
2.The marketing center is located in Wuxi City, near Shanghai port .
3.GPRO is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.
Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2.Home use: personal use for house, camping, party, etc
3.Telecom, Mobile tower, etc
4.Island, Desert or any place without electricity
5.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6.Standby power or main power, indoor or outdoor using.
