25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator

1 set
MOQ
negotiation
Price
25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Genset Model: GP-FW33S
Prime Power: 25KW 30KVA
Standby Power: 28KW 33KVA
Engine Brand: FAWDE
Engine Model: 4DW92-39D
Rated Current(A): 45.1 (A)
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

emergency diesel generator

,

silent diesel generator set
Basic Infomation
Place of Origin: China（Mainland）
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP-FW33S
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description



25KW 30KVA FAWDE Generator , Brushless Self Exciting Generator​



Product describition



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP-FW33S
1.2 Prime at 50HZ, 40℃ ambient 25KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 28KW 33KVA
1.4 Rated Gen-set output 400/230V 50Hz/60HZ
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1800x760x1150
Silent: 2320x1060x1150
1.7 Weight Open: 800kg, Silent: 1100kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE/Xichai
2.2 Engine Model 4DW92-39D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model G184F
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156KG

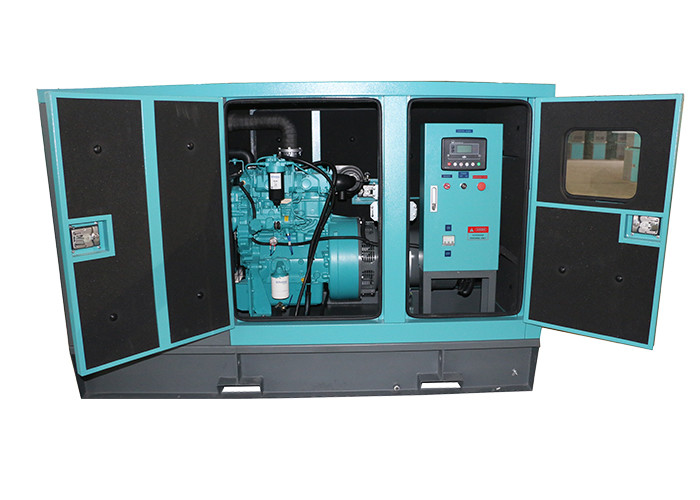

25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator 0

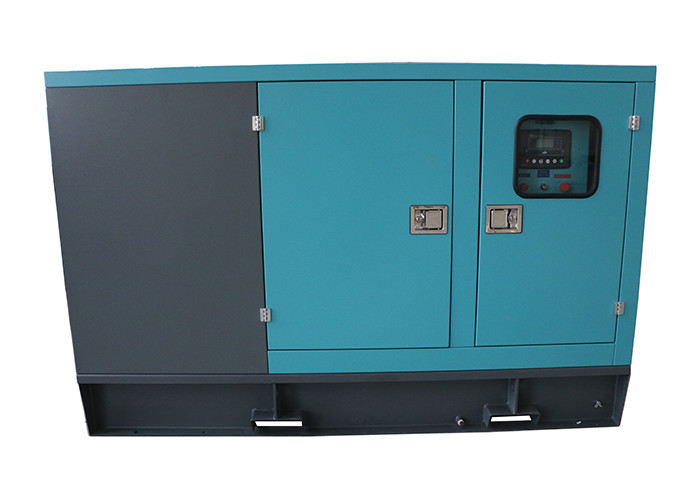

25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator 1

Why choose us:



Description:

Wuxi Gpro Power Solution Co., Ltd ltp  focuses on China's generator products and services.In the field of power generation for more than 10 years, all of our generators are designed and manufactured to provide full power performance and rated generators for actual capacity. The company and many well-known enterprises at home and abroad to maintain a long-term strategic friendship and cooperation.



1. Our warranty is 1 year or 1000 hours, whichever comes first.
2. Global warranty is available based on the engine and alternator of your choice.
3. The payment method is T/T 30% advance and 70% of the balance should be paid prior to shipment.
4. Our standard delivery time is 20 to 30 days.







We supply Generator Sets from 2kva to 3000kva.





If You Are Interesting In GPRO, Pls Contace Us Freely ,Welcome To Visit GPRO!! 
