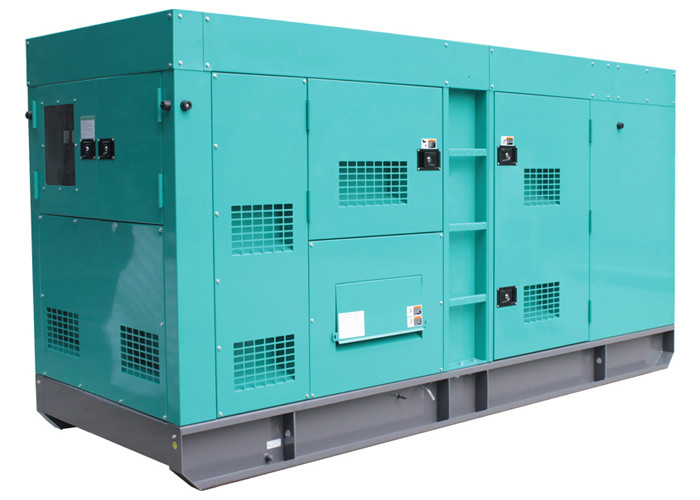

688KVA 550 KW Generator Low Fuel Consumption Super Silent

Place of Origin China(Mainland)
Brand Name PowerFriend
Certification ISO9001/ISO14001
Model Number PF-CC688S
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details poly wooden case or plastic poly
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 500 sets / Month
Product Details
Genertor Prime Power 500KW 625KVA Generator Standby Power 550KW 688KVA
500KW Generator Engine KTAA19-G6A 500kw Generator Alternator STAMFORD / MECC
500KW Generator Controller Stamford Type, Brushless, 100% Copper Controller Deepsea/ ComAp
Generator 500kw Fuel Tank 8 Hours When 100% Loading ATS Socomec Aiskai
Warranty 1 Year Or 1000 Hours Certificates CE,ISO9001
High Light

Low Fuel Consumption 550 kw generator


688KVA 550 kw generator


ISO9001 super silent diesel generator

Leave a Message
Product Description

Silent 500kw 625kva Cummins Diesel Generator Set Global Service Low Fuel Consumption


Structure of Gen-set
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.


1.1 Set Model PF-CC688S
1.2 Prime at 50HZ, 40℃ ambient 500kw/625kva
1.3 Standby at 50HZ, 40℃ ambient 550KW 717KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5327kg
1.8 Fuel consumption 100% prime load 93.3L/h
1.9 Total heat radiated to ambient 79KW
1.10 Noise Level at 7m (Normal/Super) 80dB
1.11 Control system (Optional)

Basic control panel or Advanced

control panel with automatically start-up function and other function.

2.1 Engine Brand
2.2 Engine Model KTAA19-G6A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 470KWm
2.14 Engine Standby Power at 1500rpm 555KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 50L
2.18 Coolant capacity - radiator and engine (40℃) 91L
2.19 Exhaust temp - full load prime 524℃
2.20 Exhaust gas flow - full load prime 4842m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 13.7 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air intake - engine- full load prime 1750m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt whole changeable lubricating

oil, fuel filter and air filter

2.28 Exhaust system

Adopt industrial high efficiency

muffler and ripple pipe

3.1 Alternator Model HCI544FS
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 1250kg



688KVA 550 KW Generator Low Fuel Consumption Super Silent 2

688KVA 550 KW Generator Low Fuel Consumption Super Silent 3
Factory Environment
688KVA 550 KW Generator Low Fuel Consumption Super Silent 4



Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.


Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.


      Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

      Delivery: 25 days after we get the down payment.

      Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000            running hours from date of commissioning whicheverdate occurs the sooner.
