Home /Products/Diesel Generator Set/Mobile Diesel Generator Set 44KW 55 KVA Genuine Stamford Alternator

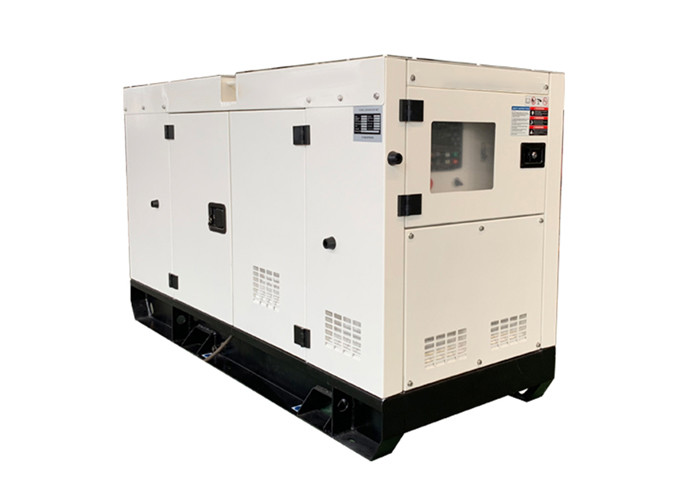

Mobile Diesel Generator Set 44KW 55 KVA Genuine Stamford Alternator

1 set
MOQ
8000-10000
Price
Mobile Diesel Generator Set 44KW 55 KVA Genuine Stamford Alternator
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 40KW / 50KVA
Max Power: 44KW / 55KVA
Engine Model: 4DX21-45D
Alternator Brand: Stamford / UCI224G
Noise Level: 70 DB At 7 Meters
Controller: DEEPSEA 6020/7320
Fuel Tank Capacity: 8 Hours When 100% Loading
ATS: Socomec / Aiskai
STRUCTURE: Wheels
High Light:

FAWDE Diesel Generator Set

,

Mobile Diesel Generator Set

,

44KW 55 kva generator
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO9001/ ISO14001 / CE / SONCAP
Model Number: GP55FW
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 25 work days
Supply Ability: 250 sets / Month
Product Description



44KW / 55KVA Mobile Genset Diesel Generator Set Trailer Type With Wheels

Competitive Advantage:


1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.



1. SPECIFICATIONS OF FAWDE 50KVA GENERATOR
1.1 Set Model GP55FW
1.2 Prime at 50HZ, 40℃ ambient 40KW 50KVA generator
1.3 Standby at 50HZ, 40℃ ambient 44KW 55KVA generator
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Silent: 2320*1100*1200MM
1.7 Weight Silent: 1200kg
2. SPECIFICATIONS OF FAW ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DX21-45D
2.3 Governor/Class Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type NATURAL
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.13 Engine Prime Power at 1500rpm 39KWm
2.14 Engine Standby Power at 1500rpm 43KWm
2.15 Lubrication oil capacity 13L
2.16 Oil consumption 0.06
2.17 Dry weight of base 380Kg
2.18 Dry weight of Gen Pac 405Kg
2.19 Overall dimension(G.P) 1155×680×835(mm)
2.2 Overall dimension(base) 810×680×800(mm)
2.21 27℃ air consumption ( m³/ min) 3.2
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model G224D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 54.1A
3.12 Efficiency 86.60%
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 216kg




Description:

1. Power Range: 0-150KVA
2. Engine: FAWDE
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized

Applications:

1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.


photos of the generator set:







Packaging & Shipping

Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
high quality diesel genset with 20-150kva engine series power.jpg
