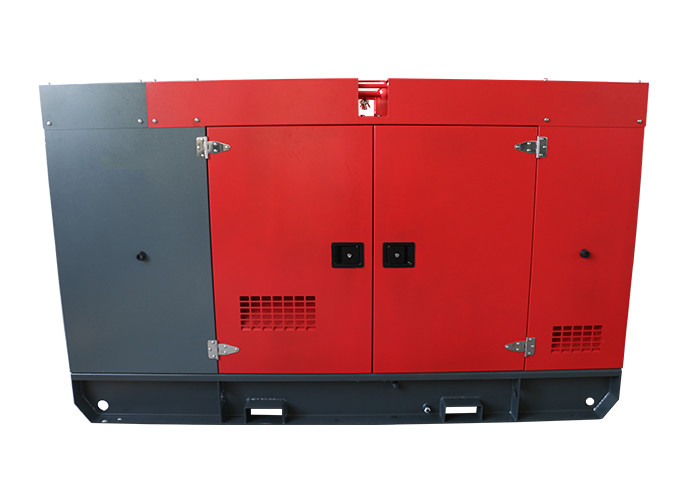

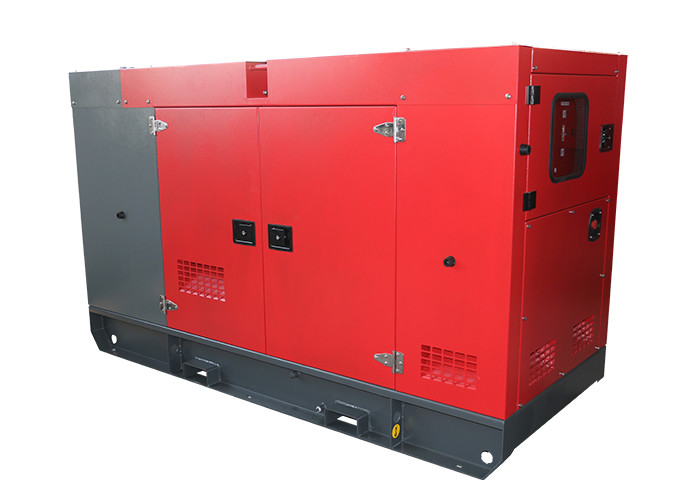

FAWDE 50KVA AC Three Phase Diesel Generator Set
Main Features
1) Simple structure in completely deisgn ,easy in installation and maintation.
2) Adopting advanced world famous brand components in electric parts and operation parts.
3)Double walled fuel tank.
4) Come with forklift pockets
1. SPECIFICATIONS OF FAWDE 50KVA GENERATOR | |
Set Model | GP-FW55S |
Prime at 50HZ, 40℃ ambient | 40KW 50KVA generator |
Standby at 50HZ, 40℃ ambient | 44KW 55KVA generator |
Rated Gen-set output | 230/400V 50Hz |
Rated Relative humidity | ≤ 60 % |
Dimension (L×W×H) | Silent: 2320*1100*1200MM |
Weight | Silent: 1200kg |
2. SPECIFICATIONS OF FAW ENGINE | |
Engine Brand | FAWDE |
Engine Model | 4DX21-45D |
Governor/Class | Electronic |
Cylinder NO. | 4 |
Engine build | Line |
Emission compliant | Stage II |
start-up method | 24V, electric |
Air intake type | NATURAL |
Cooling mode | Water Cooling |
Bore and stroke | 102×118 mm |
Compression ratio | 17:01 |
Displacement | 3.86 |
Engine Prime Power at 1500rpm | 39KWm |
Engine Standby Power at 1500rpm | 43KWm |
Lubrication oil capacity | 13L |
Oil consumption | 0.06 |
Dry weight of base | 380Kg |
Dry weight of Gen Pac | 405Kg |
Overall dimension(G.P) | 1155×680×835(mm) |
Overall dimension(base) | 810×680×800(mm) |
27℃ air consumption ( m³/ min) | 3.2 |
Fuel type | #0 Diesel (Natural temperature) |
Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
3. SPECIFICATIONS OF ALTERNATOR | |
Alternator Model | UP224D |
Alternator Type | A.C. Synchronous |
Rated Voltage | 230/400V |
Rated Frequency | 50HZ |
Rated speed | 1500 RPM |
Voltage regulation mode | Auto |
Alternator voltage regulation | ±0.5% |
Exciting mode | Brushless self exciting |
Power factor | 0.8 (lagging) |
Phase & wires | 3 phase 12 wires |
Rated currency | 54.1A |
Efficiency | 86.60% |
Insulation class | H |
Protection class | IP23 |
Single load step to NFPA110 | 100% |
Standards | IEC34-1,NEMA1 |
Max. Ambient Temperature | 40℃ |
Min. Ambient Temperature | - 20℃ |
Max. altitude | 1000m |
Weight | 216kg |
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
