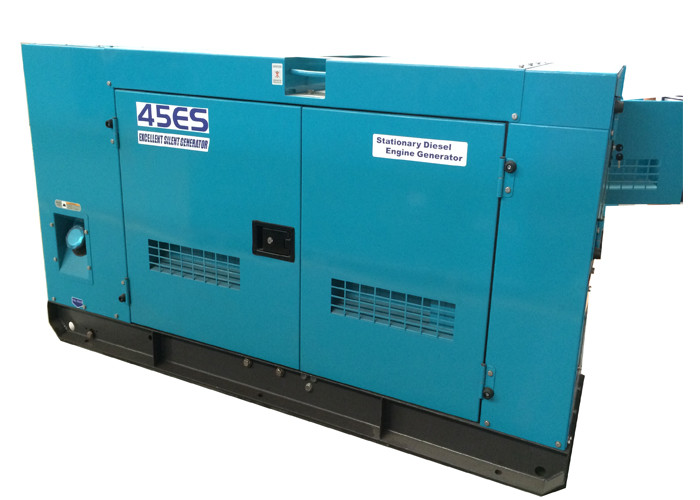

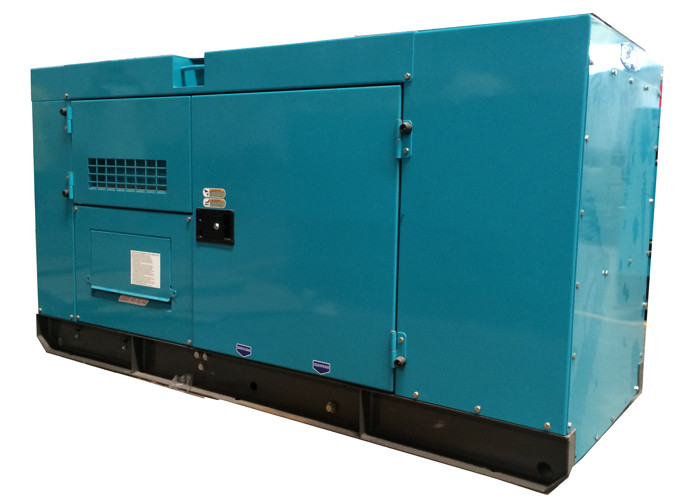

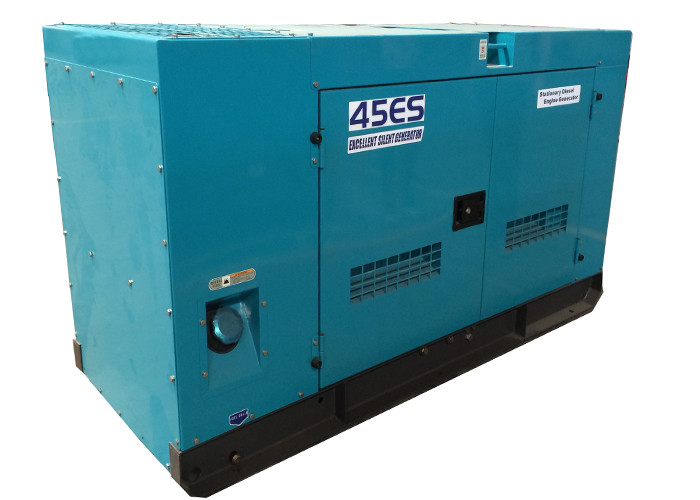

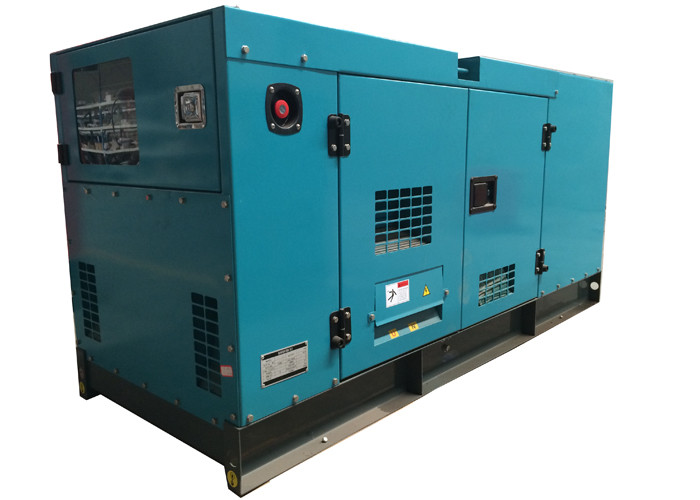

Hospital 125kva 100kw emergency diesel generator FPT FPT engine
SPECIFICATION:
125kva Silent type generator set specification:
1.1 | Set Model | GP138FPS |
1.2 | Prime at 60HZ, 40℃ ambient | 100KW 125KVA |
1.3 | Standby at 60HZ, 40℃ ambient | 110KW 138KVA |
1.4 | Rated Gen-set output | 220/380V 60Hz |
1.5 | Rated Relative humidity | ≤ 60 % |
1.6 | Dimension (L×W×H) | 3160X1100X1590mm |
1.7 | Weight | 1800kg |
1.8 | Fuel consumption 100% prime load | 31.8L/h |
1.9 | Total heat radiated to ambient | 26KW |
1.10 | Noise Level at 7m (Normal/Super) | 72dB |
1.11 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
1.12 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
125kva FPT engine specification:
2. SPECIFICATIONS OF ENGINE | ||
2.1 | Engine Brand | Original Italy FPT |
2.2 | Engine Model | NEF67Tm2A |
2.3 | Governor/Class | Electrical |
2.4 | Cylinder NO. | 6 |
2.5 | Engine build | Line |
2.6 | Fuel spray pattern | PT direct injection |
2.7 | start-up method | 24V, electric |
2.8 | Aspiration | Turbocharged/Charged air cooled |
2.9 | Cooling mode | Radiator cooled (enclose water) |
2.10 | Bore and stroke | 102×120 mm |
2.11 | Compression ratio | 16.5:1 |
2.12 | Displacement | 5.9 L |
2.13 | Engine Prime Power at 1800rpm | 130KWm |
2.14 | Engine Standby Power at 1800rpm | 140KWm |
2.15 | Battery capacity | 120A/hr |
2.16 | Starting/Min temperature | 4℃ |
2.17 | Lubrication oil capacity | 16L |
2.18 | Coolant capacity - radiator and engine (40℃) | 28L |
2.19 | Exhaust temp - full load prime | 518℃ |
2.20 | Exhaust gas flow - full load prime | 1500m 3/h |
2.21 | Exhaust gas back pressure max | 75mmHg |
2.22 | Air flow - radiator (40℃ ambient) | 3.5 m 3/s |
2.23 | Pusher fan head (duct allowance) 40℃ | 13mmH 2O |
2.24 | Air intake - engine- full load prime | 498m 3/h |
2.25 | Standard Air intake temp | 25℃ |
2.26 | Fuel type | #0 Diesel (Natural temperature) |
2.27 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
2.28 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
Description:
1. Original Euro italy engine
2. Alternator: Italy Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Silent type, weather proof, Trailer type
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original EURO ITALY engine , good quality , good price.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
If you are interested, please contact with us at any time!
