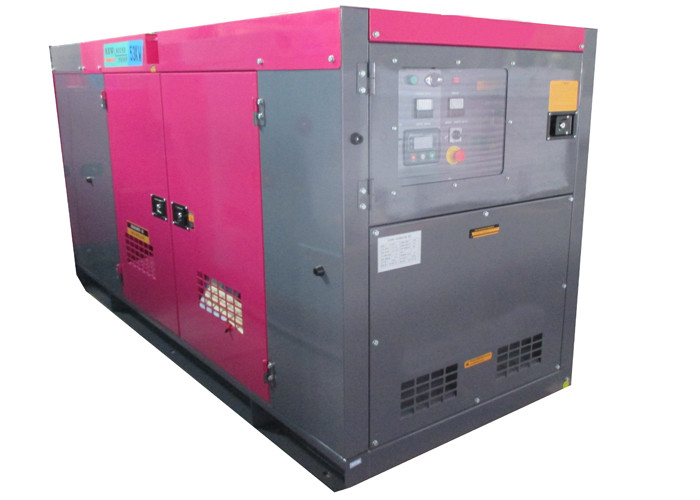

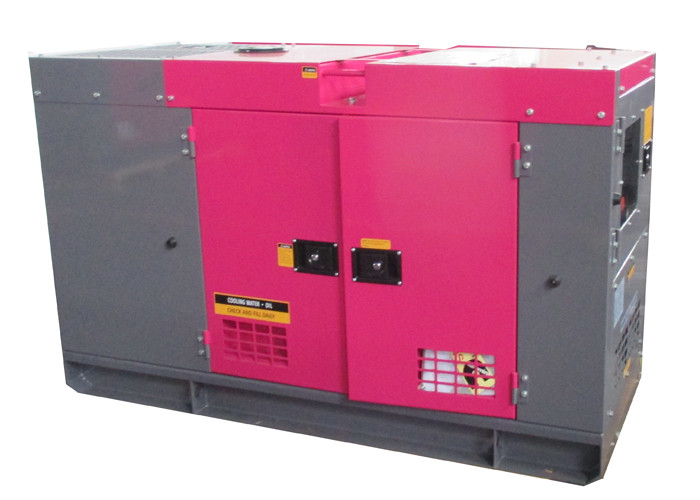

Cummins 50kva synchronizing diesel silent generator set weather proof
SPECIFICATION:
| Genset Model | GP50DCS | |
| Prime Power (KVA/KW) | 50/40 | |
| Standby Power (KVA/KW) | 55/44 | |
| Engine Model | Cummins / 4BTA3.9-G2 | |
| Alternator Model | Stamford / UCI224D | |
| Bore*Stroke(mm) | 102*120 | |
| No. Cylinder | 4L | |
| Starting Method | Electric starting | |
| Cooling Method | Forced water cooled | |
| Lubrication Method | Pressure & splash lubricating | |
| Fuel Consumption (L/Hr) | 12 | |
| Number of Phase | 3 | |
| Volatage | 400/230V | |
| Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Insulation Grade | H | |
| Protection Grade | IP22/23 | |
| Altitude | ≤1000m | |
| Silent Type | Demention (L*W*H) (mm) | 2500*1000*1455 |
| Gross Weiht (kg) | 1350 | |
CUMMINS ENGINE SPECIFICATION:
| Type | 4 cylinder, turbocharged |
| Combustion type | Direct inject |
| Number of cylinder | in line 4 cylinders |
| Bore x Stroke | 102x120mm |
| Displacement | 3.9L |
| Cranking motor | 24v DC |
| Compression Ratio | 16.5:1 |
| Governor method | Electronic governor |
| Lub. method | full force pressure feed type |
| Cooling method | Fresh water force circulation |
| Starting method | Electric motor 24v |
| Fuel filter | full flow, cartridge type |
| Oil filter | full flow, cartridge type |
| Lube oil capacity | 11 L |
| Fuel consumption | 12 L/hr (full loading) |
Description:
1. Original Cummins engine
2. Alternator: Italy Mecc alte / Stamford

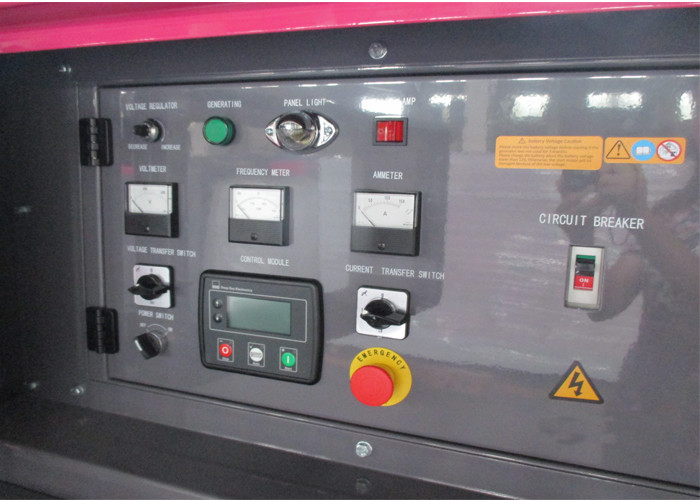

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original Cummins engine , good quality , good price.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
