Stamford brushless generator alternator three phase 220v 100% copper alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 16kw 20ka | Frequency | 50/60hz |
|---|---|---|---|
| AVR | Brushless | Bearing | Single/Double |
| Copper | 100% Copper | Protection | IP 22 Or IP23 |
| Insulation | Class F/H | Warranty | One Year Or 1000hrs |
| Voltage | 190-454v | ||
| High Light | electric alternator,stamford alternators |
||
Product Description
Stamford brushlessgenerator alternator three phase 220v 100% copper alternator
Brushless alternator specifications:
|
Model |
3 PHASE 50HZ 1500RPM |
3 PHASE 60HZ 1800RPM 110-240V/230-460V |
||
|
KVA |
KW |
KVA |
KW |
|
|
PF164A |
8.1 |
6.5 |
10.2 |
8.2 |
|
PF164B |
11 |
8.8 |
13.8 |
11 |
|
PF164C |
13.5 |
10.8 |
16.9 |
13.5 |
|
PF164D |
16 |
12.8 |
20.2 |
16 |
|
PF184ES |
20 |
16 |
25 |
20 |
|
PF184E |
22.5 |
18 |
28.8 |
23 |
|
PF184F |
27.5 |
22 |
34.4 |
27.5 |
|
PF184G |
31.3 |
25 |
37.5 |
30 |
|
PF184H |
37.5 |
30 |
46.9 |
37.5 |
|
PF184J |
40 |
32 |
50 |
40 |
|
PF224C16 |
42.5 |
34 |
52.5 |
42 |
|
PF224D16 |
50 |
40 |
62.5 |
50 |
|
PF224E16 |
60 |
48 |
72.5 |
58 |
|
PF224F16 |
72.5 |
58 |
87.5 |
70 |
|
PF224G16 |
85 |
68 |
100 |
80 |
|
PF274C14 |
100 |
80 |
125 |
100 |
|
PF274D14 |
114 |
91 |
138 |
110 |
|
PF274DL14 |
125 |
100 |
156 |
125 |
|
PF274E14 |
140 |
112 |
168 |
134 |
|
PF274EL14 |
150 |
120 |
187.5 |
150 |
|
PF274F14 |
160 |
128 |
190 |
152 |
|
PF274G14 |
175 |
140 |
213 |
170 |
|
PF274H14 |
200 |
160 |
245 |
196 |
|
PF274J14 |
225 |
180 |
281 |
225 |
|
PF274K14 |
250 |
200 |
320 |
256 |
|
PF444C1 |
250 |
200 |
320 |
256 |
|
PF444D1 |
294 |
135 |
380 |
305 |
|
PFK444D1 |
313 |
250 |
390 |
312 |
|
PF444E1 |
325 |
260 |
394 |
315 |
|
PFK444E1 |
350 |
280 |
405 |
324 |
|
PF444F1 |
375 |
300 |
488 |
390 |
|
PFK444F1 |
400 |
320 |
500 |
480 |
|
PF544C1 |
450 |
360 |
594 |
475 |
|
PF544D1 |
500 |
400 |
625 |
500 |
|
PF544DL1 |
563 |
450 |
703 |
563 |
|
PF544E1 |
600 |
480 |
750 |
600 |
|
PF544FD1 |
625 |
500 |
780 |
624 |
|
PF544F1 |
670 |
536 |
800 |
640 |
|
PF634B |
750 |
600 |
900 |
720 |
|
PF634C |
800 |
640 |
958 |
766 |
|
PF634D |
910 |
728 |
1090 |
872 |
|
PF634E |
1000 |
800 |
1197 |
958 |
|
PF634F |
1130 |
904 |
1332 |
1066 |
|
PF634G |
1250 |
1000 |
1450 |
1160 |
Description:
1. Power Range: 6.5-1000kw
2. Alternator: AC three phase/ single phase, brushless, 100% copper.
3. Color: Can be customized
4. AVR: MX321, MX341, AS440, SX440, SX460, etc
5. The generators have been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000M above sea level.
6. Arranges in order all voltages may obtain from the single wide wingding,also namely (three-phase) and 4 (single-phase) reorganizes through 12 terminals may obtain.
7. Other special voltage can meet by our company.
Applications:
For Genset, generator replacement, reselling, etc.
Competitive Advantage:
1. Full power.
2. All with 100% copper.
3. low consumption
4. The components we use are in high quality.
5. Pre and after sales service is provided.
6. Fast response for the inquires, service, etc.
Euipments for your reference:

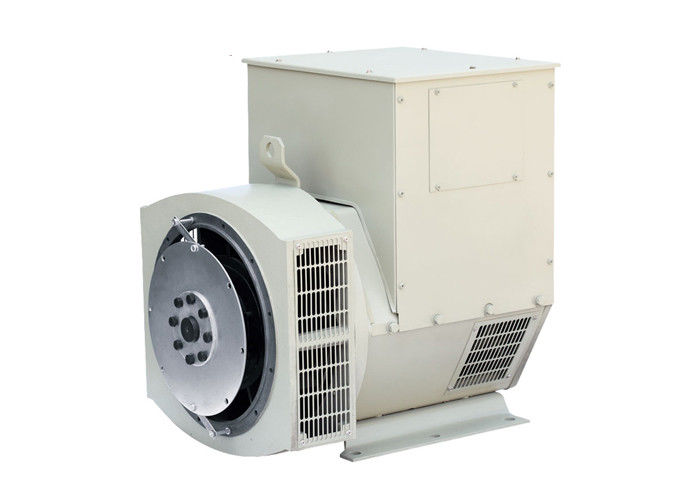

Brushless alternators Photos:
