400kw 500kva brushless alternators 544D AC 3 phase 50HZ / 1500rpm , single bearing alternator

Place of Origin Wuxi, China
Brand Name BWIN
Certification ISO, CE, Saso
Model Number BWIN-544D
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywooden box
Delivery Time 15 days after advance payment
Supply Ability 1000pcs/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power(Prime/Standby) 400KW 500KVA Frequency 50/60hz
AVR Brushless Bearing Single/Double
Copper 100% Copper Protection IP 22 Or IP23
Insulation Class F/H Warranty One Year Or 1000hrs
Voltage 190-454v
High Light

electric alternator

,

generator alternator

Leave a Message
Product Description

400kw 500kva brushless alternators 544D AC 3 phase 50HZ / 1500rpm , single bearing alternator





Brushless alternator specifications(120kw/ 150kva):



Alternator Model PF544D
Rated Power 400KW 500KVA
Alternator Type A.C. Synchronous
Rated Voltage 230/400V
Rated Frequency 50HZ
Rated speed 1500 RPM
Voltage regulation mode Auto
Alternator voltage regulation ±0.5%
Exciting mode Brushless self exciting
Power factor 0.8 (lagging)
Phase & wires 3 phase 12 wires
Rated currency 721.7A
Efficiency 0.938
Insulation class H
Protection class IP23
Single load step to NFPA110 100%
Standards IEC34-1
Max. Ambient Temperature 40℃
Min. Ambient Temperature - 20℃
Max. altitude 1000m
Weight 1250kg



Description:



1.    Power Range: 6.5-1000kw

2.    Alternator: AC three phase/ single phase, brushless, 100% copper.

3.    Color: Can be customized

4.    AVR: MX321, MX341, AS440, SX440, SX460, etc

    5.    The generators have been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000M above sea level.

  6.    Arranges in order all voltages may obtain from the single wide wingding,also namely (three-phase) and 4 (single-phase) reorganizes through 12 terminals may obtain.

   7.  Other special voltage can meet by our company.

  8.   Optinal permanent magnetic alternator,provide invariable excitation in any situation.

  9.   Easy to be connected with power network or other alternators.Standard 2/3pitch windings avoid excessive neutral current.

  10.  Dynamically balanced rotords,with single or teo sealed ball bearings.

  11.   Simple installation and maintenance with easy access to terminals,rotating diodes and coupling bolts.

  12.  Wide range of flange adaptor and single bearing coupling disc.

  13.  Built to conform to all leading industrial standards.



Applications:



For Genset, generator replacement, reselling, etc.



Competitive Advantage:



1.    Full power.

2.    All with 100% copper.

3.    low consumption

4.    The components we use are in high quality.

5.    Pre and after sales service is provided.

6.    Fast response for the inquires, service, etc.



Euipments for your reference:



400kw 500kva brushless alternators 544D AC 3 phase 50HZ / 1500rpm , single bearing alternator 0

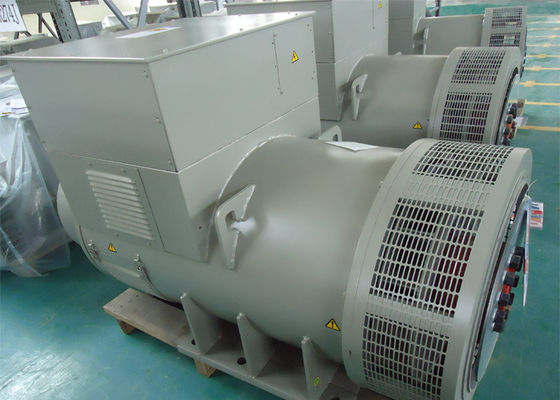

Brushless alternators Photos:

400kw 500kva brushless alternators 544D AC 3 phase 50HZ / 1500rpm , single bearing alternator 1



Brushless alternators Packing and Loading Photos:



400kw 500kva brushless alternators 544D AC 3 phase 50HZ / 1500rpm , single bearing alternator 2
