Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva

1
MOQ
negotiable
Price
Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 500KVA 400KW
Standby Power: 550KVA 440KW
Frenquency: 50/60HZ
Voltage: 220v-690v
Engine: DCEC/CCEC/USA Cummins
Alternator: Meccalte/Stamford/Marathon
Controller: Deepsea/Smartgen/Harsen
MCCB: ABB/Delixi
Warranty: One Year Or 1000hrs
Fuel Tank: 8 Hours 100% Loading
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: GPRO
Certification: ISO, CE
Model Number: GP550CCS
Payment & Shipping Terms
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25 days after deposit
Payment Terms: T/T or L/C
Supply Ability: 500pcs/ Month
Product Description

Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP550CCS
1.2 Prime at 50HZ, 40℃ ambient 400KW 500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW 550KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5357kg
1.8 Fuel consumption 100% prime load 107L/h
1.9 Total heat radiated to ambient 88KW
1.10  Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set

The Gen-set adopt integrative structure,

 engine is fix on high strength

steel basic frame, anti vibration

instrument between the engine

 and basic frame, cooling fan

 have protecting cap,

control cabinet and circuit

breaker installed on Gen-set.

1.12 Control system (Optional)

Basic control panel or

 Advanced control panel

 with automatically  start-up

 function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G4
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode

Radiator cooled

 (enclose water)

2.10  Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 448KWm
2.14 Engine Standby Power at 1500rpm 504KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 0℃
2.17 Lubrication oil capacity 50L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 91L
2.19 Exhaust temp - full load prime 538℃
2.20  Exhaust gas flow - full load prime 5162m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 13.7 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 1912m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable

  lubricating  oil, fuel

    filter and air filter

2.28 Exhaust system

Adopt  industrial  high

efficiency  muffler and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Marathon
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20  Weight 1250kg

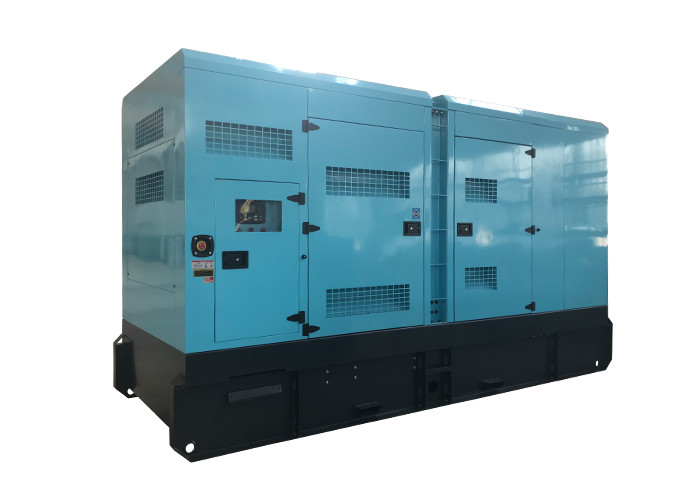

Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

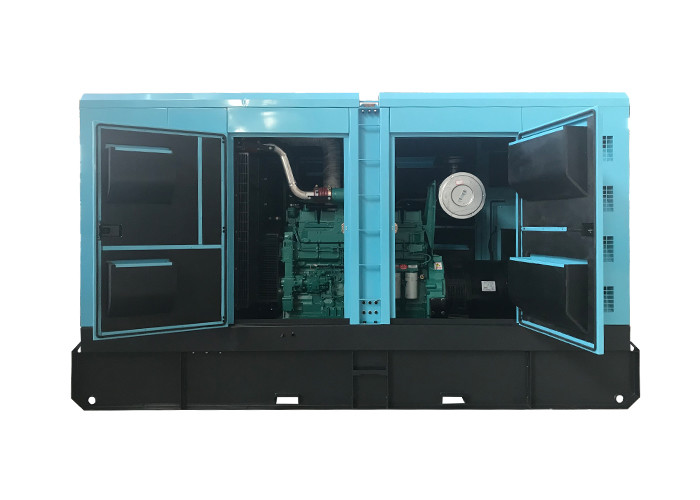

Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva 1

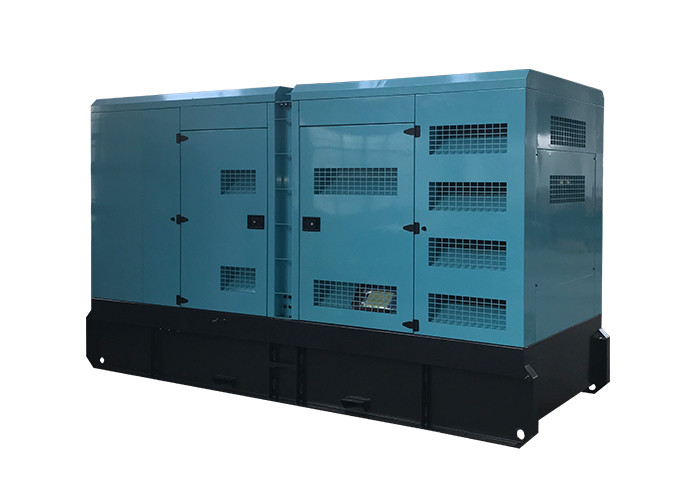

Cummins Power Generator KTA19-G4 With Marathon Alternator 550kva 2
