180A 300A Adjustable Welder Diesel Generator 0 To 300 3000RPM 3600RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 7KVA | Speed | 3000RPM 3600RPM |
|---|---|---|---|
| Welding AC Current | 0-300A | Generator Running Hours | 8 Hours |
| High Light | silent diesel generator set,emergency diesel generator |
||
Product Description

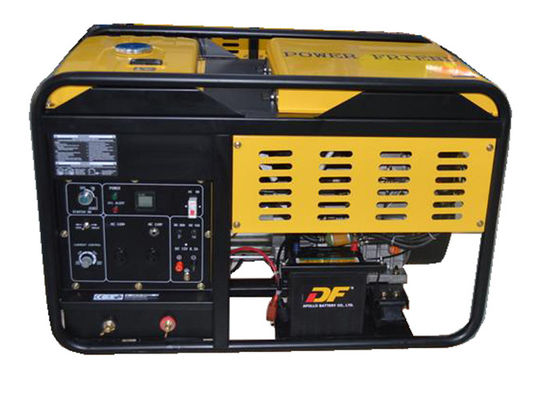

180A 300A Welder Diesel Generator 0 To 300 Ajustable Welder Generator
| 300A Welder generator specification | |||
| Model | PF-DH10 | ||
| Frequency | Hz | 50 60 | |
| Rated power | KVA(KW) | 3 3 | |
| Voltage | V | 230 240 | |
| Electricity Amp | A | 8 9.6 | |
| Phase/Factor | 3/0.8 | ||
| Speed | 3000 3600 | ||
| Welding dc current adjusting range | A | 0-300 | |
| direct current welding voltage | V | 25-70V | |
| Welding load factor | 60% | ||
| Welding rectifier way | IGBT, 3 phase rectifier bridge | ||
| Pole | 2 | ||
| Controler model | Normal/Auto | ||
| Output type | Electric output | 3 Phase socket | |
| Welding output | binding post | ||
| exciting type | AVR Self-excitation voltage regulator | ||
| insulation grade | H | ||
| Dimension:L*W*H | mm | 850x780x820 | |
| Net weight | kg | 175 | |
| Type | OPEN TYPE | ||
| Engine model | R2V840-V2 | ||
| Engine type | 2 cylinder,V type,4 stroke,Tur | ||
| Cylinder NO.-Bore X stroke | mm | 2--86x72 | |
| Displacement | ml | 840 | |
| Rated power | KW | 11.76 12 | |
| Compression ratio | 19:01 | ||
| Rated speed | r/min | 3000 3600 | |
| Sparking model | pressure combustion | ||
| Cooling type | Air cooling | ||
| Lubricating system | Pressure and spatter composite | ||
| Start-up type | Electric start | ||
| Fuel type | Fuel 0#,-10#,-35# | ||
| Lubricating oil type | L-ECD 10W/30 15W/40 | ||
| Cooling water capacity | L | - | |
| Lubricating oil capacity | L | 2.7 | |
| Starter capacity | V-KW | 12V-1.4KW | |
| Charging generator capacity | V-A | 14V-15A | |
| Battery capacity | V-AH | 12V-36AH | |
| Fuel consumption rate | g/kw.h | ≤298 | |
| Fuel tank capacity | L | 25 | |
| Generator running hours | h | 8 | |
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
