Low consumption WUXI FAWDE diesel generator set 4DW81-23D 4DW91-29D super silent

Place of Origin CHINA
Brand Name POWER FRIEND- FAW XICHAI generator
Certification ISO9001/ISO14001 /CE
Model Number B-XC15 -375
Minimum Order Quantity 1
Price 2000-3200
Packaging Details poly wooden case / poly bag
Delivery Time 25 days after get the deposit
Payment Terms Western Union, T/T, L/C
Supply Ability 1 set / 25 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 15KVA/12KW Standby Power 17KVA/ 13KW
Noise 65dB 7 Meters Super Silent Type Fuel Tank 8 Hours /24 Hours/ 72 Hours
Certificate ISO9001/ISO14001/CE Altenrator Stamford / Mecc / Chinese Brand

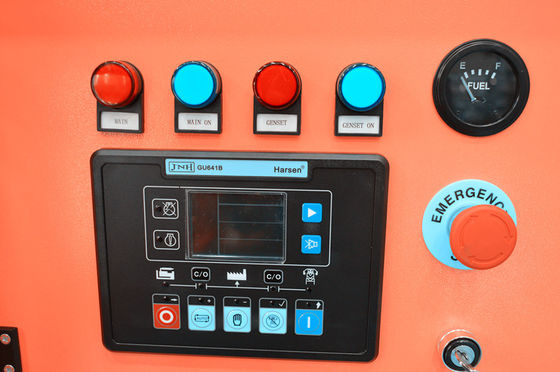

Controller DEEPSEA / SMARTGEN/ HARSEEN
High Light

silent diesel generator set

,

emergency diesel generator

Leave a Message
Product Description

FAW motor diesel generator set --15kva specification:





1. SPECIFICATIONS OF GEN-SET
1.1 Set Model B-XC15
1.2 Prime at 50HZ, 40℃ ambient 12KW 15KVA
1.3 Standby at 50HZ, 40℃ ambient 13.2KW 16.5KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1500*700*1050,
Silent: 2000*940*1200
1.7 Weight Open: 700kg, Silent: 1100kg
1.8 Fuel consumption 100% prime load 4
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW81-23D
2.3 Governor/Class Machanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 85×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.27
2.13 Engine Prime Power at 1500rpm 17KWm
2.14 Engine Standby Power at 1500rpm 19KWm
2.15 Lubrication oil capacity 7.8L
2.16 Oil consumption 0.05
2.17 Dry weight of base 220Kg
2.18 Dry weight of Gen Pac 240Kg
2.19 Overall dimension(G.P) 920×610×760(mm)
2.2 Overall dimension(base) 750×555×680(mm)
2.21 27℃ air consumption ( m³/ min) 1.4
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/PI 044G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 23A
3.12 Efficiency 81.70%
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 99kg



Description:



1. Chinese FAWDE Diesel Engine

2. Alternator: Stamford / Mecc Alte / Chinese brand engine

3. Controller: UK Deepsea / Smartgen / ComAp / Harseen

4. Options: remote controller, synchronizing.

5. ATS is optional

6. Type: Silent type, weather proof, Trailer type

      7. Color: Any color

      8. Support OEM



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow





Competitive Advantage:



1. Competitive price

2. Good quality engine and alternator

3. Fast delivery. engine in stock

4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service

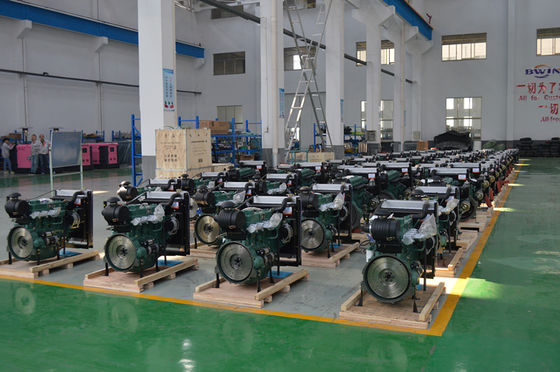

FAW ENGINES IN STOCK:



Low consumption WUXI FAWDE diesel generator set 4DW81-23D 4DW91-29D super silent 0

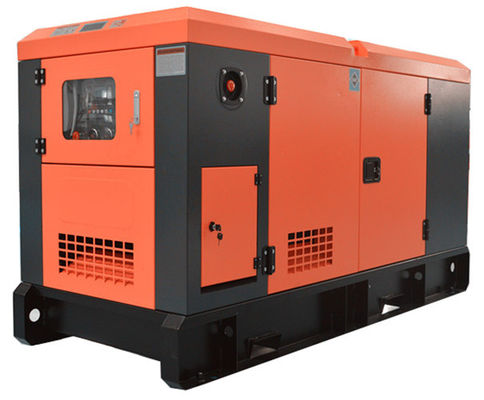

SILENT GENERATOR PHOTOS:



Low consumption WUXI FAWDE diesel generator set 4DW81-23D 4DW91-29D super silent 1
