16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE

  • High Light

    power generating set

    ,

    industrial generators

  • Output Power
    16KW 20KVA
  • Frequency
    50/60HZ
  • Voltage
    220v - 690v Optional
  • Engine
    FAWDE
  • Alternator
    Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
  • Controller
    Deepsea, Smartgen, Harsen For Optional
  • MCCB
    ABB Or Delixi
  • Cooling System
    Water Cooled
  • Genset Type
    Open Type, Silent Type, Container Type, Trailer Type For Optional
  • ATS
    Optional
  • Place of Origin
    Jiangsu of China
  • Brand Name
    GPRO
  • Certification
    ISO,CE Certification
  • Model Number
    GP22FWS
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiation
  • Packaging Details
    Plywood or Plastic packing
  • Delivery Time
    15 - 20 working day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    300 Set / Month

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE



Model Soundproof diesel generator set

GP22FWS

SET

Rated power(Kw/kva) Standby power

16KW/20KVA       17.6KW/22KVA

Frequency(Hz)

50

Phase

3

Voltage(V)

380/220V

Current(A)

23

Fuel capacity(L)

100

Fuel consumption(L/Hour)

100% Prime power

4

Dimension (mm)

L

1880

W

800

H

1080

Weight(kg)

770

Noice level for silent type (Db/7m)

56

ENGINE

Model

4DW91-29D

Prime power(kw/kva)

16/20

Cylinders

4

Bore×stroke(mm)

93×102

Intake Method

Natural intake

Displacement(L)

2.771

Speed governing

Mechanical governor

Cooling starting method

Water cooling

ALTERNATOR

Model

G184E

Rated power(kw/kva)

12/15

Insulation class

H

Alternator enclosure

IP23

THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.


Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards

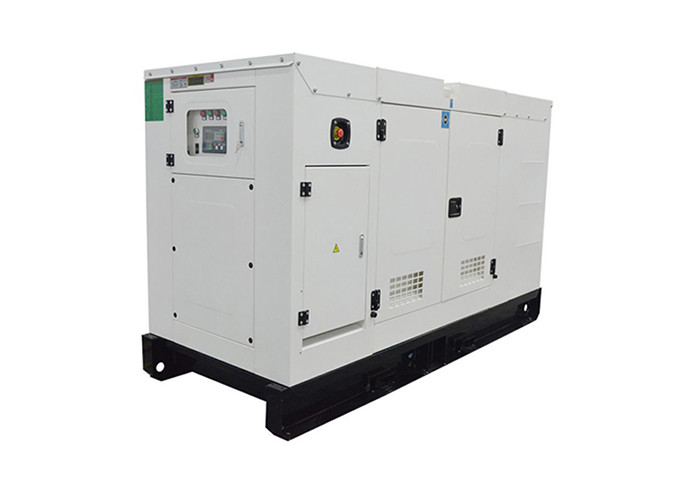

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.

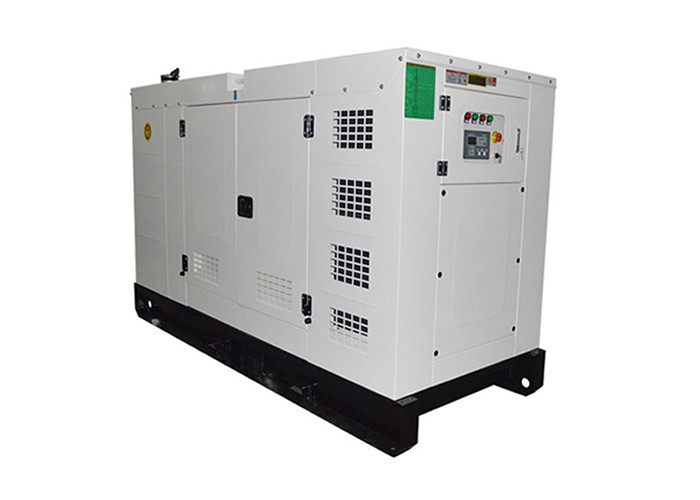

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE 1



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.

If have any questions, please contact us. Your inquiry would be appreciated.

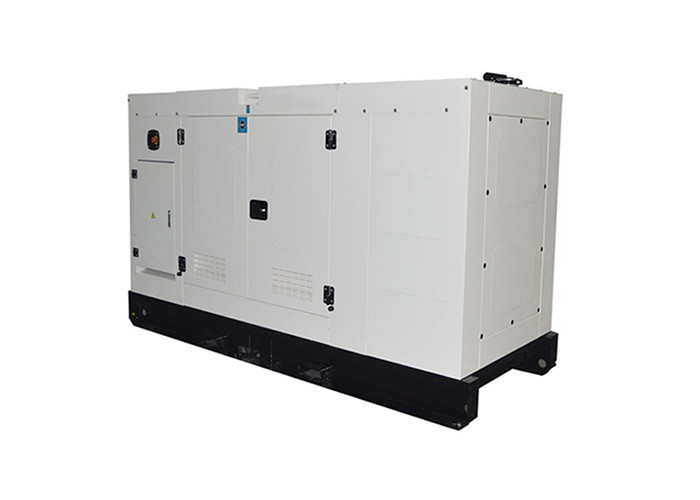

16kw Soundproof Diesel Silent Generator Set With FAW 4DW91 Engine ISO CE 2
