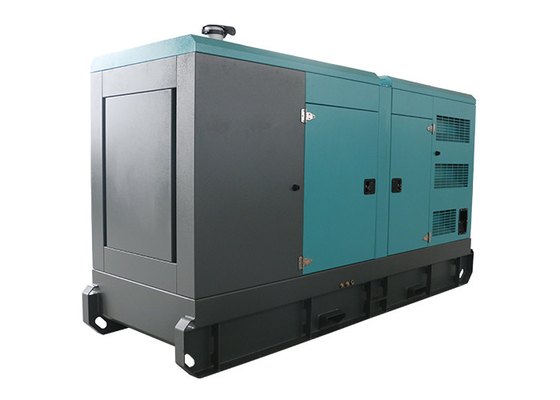

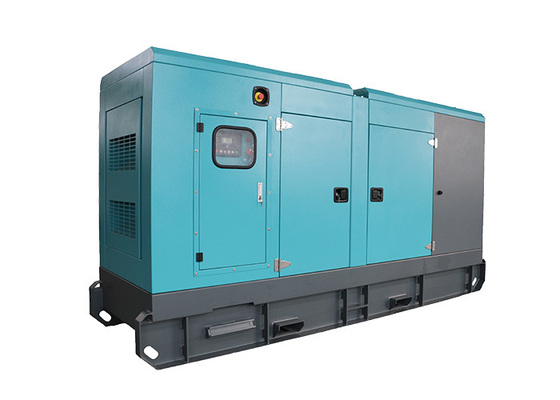

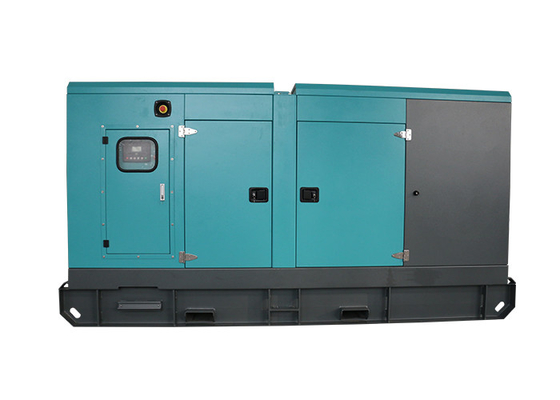

160KW 200KVA Cummins Diesel Generators Electric Power Genset Low Noise Silent type
|
Technical data
|
|
Genset Model
|
GP220DCS
|
|
Prime Power
|
160KW/200KVA
|
|
Rated Voltage
|
400/230V
|
|
Frequency
|
50/60Hz
|
|
Power Factor
|
0.8(lagging)
|
|
The regulating rate of steady voltage
|
≤±0.5%
|
|
The regulating rate of instantaneous voltage
|
≤-15%/ +20%
|
|
The time of steady voltage
|
≤1.5sec
|
|
The waving rate of voltage
|
≤1.0%
|
|
The regulating rate of steady frequency
|
≤3%
|
|
The regulating rate of instantaneous frequency
|
≤±10%
|
|
The time of steady frequency
|
3sec
|
|
Dimension (L×W×H) (mm)
|
2650*760*1600
|
|
Genset weight (kg)
|
1450
|
|
Diesel Engine
|
|
Brand
|
CUMMINS
|
|
Model
|
6CTAA8.3-G2
|
|
Number of Cylinders
|
6
|
|
Rotating Speed
|
1500RPM
|
|
Cycle
|
Four stroke
|
|
Type
|
waste gas turbine boost,direct spurting type
|
|
Bore×Stroke(mm)
|
100*127
|
|
Displacement(L)
|
6
|
|
Lubricating Capacity(L)
|
19
|
|
Speed Governor
|
Electrical
|
|
Cooling System
|
Water-cooled
|
|
Speed Stability (%)
|
≤5%
|
|
Fuel Consumption at 100% Load
|
208g/kw.h
|
|
Starting Method
|
DC24V Electrical starting
|
|
Alternator
|
|
Brand
|
Stamford
|
|
Model
|
UCI274H
|
|
Number of Phase
|
3
|
|
Connecting Type
|
Three Phase and Four Lines
|
|
Number of Bearing
|
1
|
|
Grading Protection
|
IP23
|
|
Altitude
|
≤1000m
|
|
Exciter Type
|
Brushless (AVR automatic voltage regulating)
|
|
Insulation Class
|
H degree
|
|
The components of the genset
|
|
(1) Cummins Diesel Engine; (2) Stamford Alternator; (3) Control Panel
|
|
Control Panel
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
|
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
