KOFO Emergency Diesel Generator 100kw Silent Type Electric Generation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 125KVA /100 KW | Standby Power | 137KVA/ 110KW |
|---|---|---|---|
| Engine | KOFO Diesel Engine | Alternator | Orginal Stamford / MECC ALTE |
| Controler Panel | DeepSea 4610 / Smartgen | Air Breaker | MCCB DLIXI 3 Pole Or 4 Pole |
| Warranty | 1 Year Or 1000 Hours | Certificate | ISO/CE/ CIQ/PVOC |
| High Light | denyo generator,silent diesel generator set |
||
Product Description
Diesel generator Kofo 100kw soundproof type Specification:
| Genset Model | PF-KF137S |
| Prime Power | 100KW/125KVA |
| Standby Power | 110KW/137KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 100A |
| Genset Structure | SILENT |
| Noise Level | 78 dBA@7m |
| Dimension | 3200X1120X1580MM |
| Net Weight | 1000KG |
| Engine Model | KOFO / 6105AZLD |
| Engine Features | 6-cylinder,4 stroke,water cooled, direct injection |
| Bore * Stroke | 105*135 |
| Displacement | 7L |
| 12-hour Power(kw) | 110kw/1500 |
| Fuel Consumption | 224g/kw.h |
| Compression Ratio | 17:1 |
| Starting Mode | Electric Starter 24V |
| Fuel Tank Capacity | 90L |
| Alternator Model | STAMFORD /WR224E |
| Rated Power | 100KW/125KVA |
| Max Power | 110KW/137KVA |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 1780 | HGM1780 Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display. |
Description:
1. Power Range: 100KW / 125KVA
2. Engine: Chinese brand KOFO
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Open type, super silent type, weatherproof type, Trailer type
6. Color: Red color
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Engine low fuel consumption.
2. All orignal engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

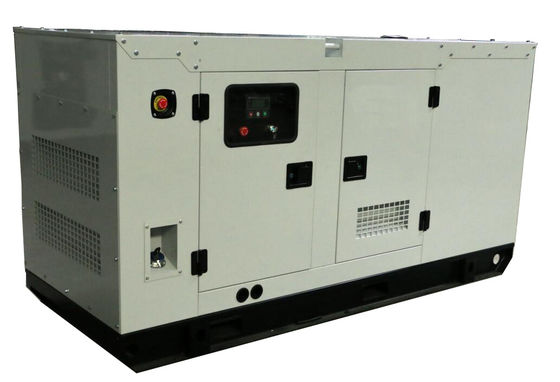

Generators photos:
