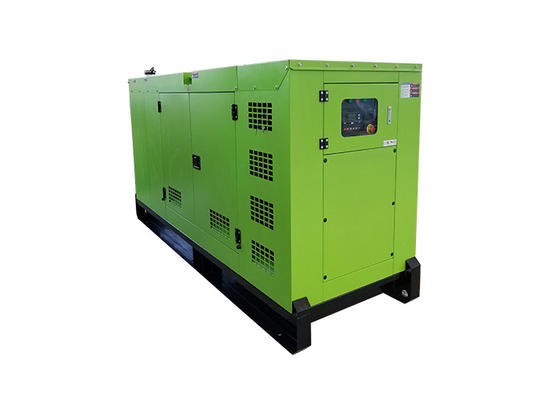

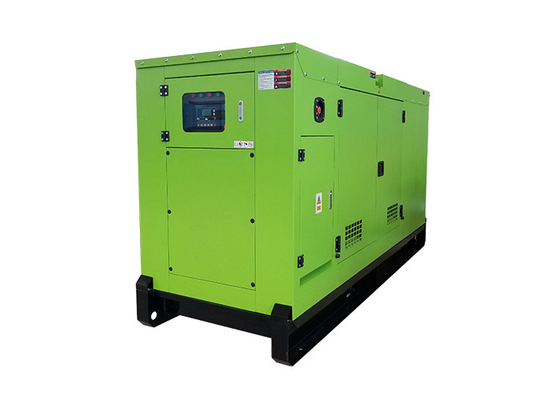

100kva Diesel Powered Generator , ATS Industrial Diesel Generators For Home Use
Technical specification | |
Genset Model | GP110DCS |
Prime Power | 80KW/100KVA |
Standby Power | 88KW/110KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 144A |
Genset Structure | SILENT |
Dimension | 2970×1120×1580mm |
Net Weight | 1750KG |
Noise level | 72dB at 7 meters |
Fuel Tank Capacity | 240L |
Engine Model | 6BT5.9-G1 |
Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
Bore * Stroke | 102mm × 120mm |
Displacement | 5.9L |
12-hour Power(kw) | 86KW/1500 |
Fuel Consumption L/H | 21.2L/H |
Compression Ratio | 16.5:1 |
Governor type | MECHANICAL |
Alternator Model | STAMFORD /UCI274C |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler panel | |
Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2. SynchronizationSystem
3. External daily fuel tank
4. Silent Canopy
5. Trailer
6. Auto Fuel Pump
7. Fuel and Water Separator
8. Lub Oil Heater
9. Coolant Heater
10. Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
If have any questions, please contact us. Your inquiry would be appreciated.
