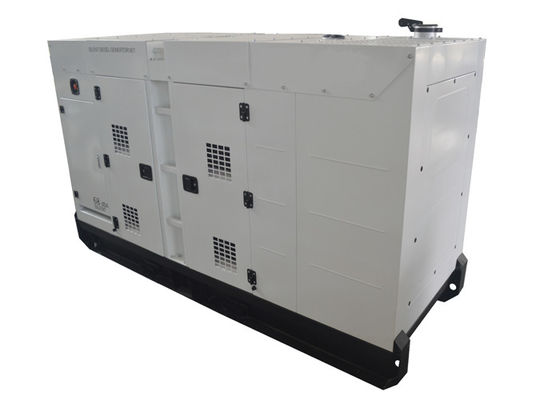

MECC Alternator Silent Generator Set With ATS 20kva To 1000kva , Cummins Engine

  • MECC Alternator Silent Generator Set With ATS 20kva To 1000kva , Cummins Engine
  • MECC Alternator Silent Generator Set With ATS 20kva To 1000kva , Cummins Engine
Place of Origin WUXI,CHINA
Brand Name Power Friend
Certification ISO9001/ISO14001/CE/PVOC
Model Number PF-DC110S
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details poly wooden case
Delivery Time 25 days
Supply Ability 500 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power(Prime/Standby) 80KW/100KVA Frequency 50HZ / 60HZ
Current 152A Voltage 220/380V
Engine Cummins / 6BT5.9-G2 Controller Smartgen / DeepSea
MCCB Delixi /ABB Sound Level/db 72dB 7 Meter
Warranty 1 Year Or 1000 Hours Alternator Original Stamford
ATS 4 Pole Auto Transfer Swtich
High Light

power generating set

,

silent diesel generators
Leave a Message
Product Description

Prime Power 100kva Compact Design Cummins Diesel Generators with ATS


100KVA Cummins silent type generator SPECIFICATION:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-DC110S
1.2 Prime at 60HZ, 40℃ ambient 80KW/100KVA
1.3 Standby at 60HZ, 40℃ ambient 88KW/110KVA
1.4 Rated Gen-set output 220/380V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2790X1050X1500mm
1.7 Weight 1500kg
1.8 Fuel consumption 100% prime load 17L/h
1.9 Total heat radiated to ambient 26KW
1.10 Noise Level at 7m (Normal/Super) 72dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel  with automatically  start-up function and other function.



Cummins engine specification:



2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand with Cummins engine
2.2 Engine Model 6BT5.9-G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Charged air cooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 5.9 L
2.13 Engine Prime Power at 1500rpm 90KWm
2.14 Engine Standby Power at 1500rpm 100KWm
2.15 Battery capacity 120A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 28L
2.19 Exhaust temp - full load prime 518℃
2.20 Exhaust gas flow - full load prime 1500m 3/h
2.21 Exhaust gas back pressure max 75mmHg
2.22 Air flow - radiator (40℃  ambient) 3.5 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 498m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt  whole  changeable  lubricating  oil, fuel    filter and air filter
2.28 Exhaust system Adopt  industrial  high  efficiency  muffler and ripple pipe



Description:


1. Original Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.



Mass generators photos:



MECC Alternator Silent Generator Set With ATS 20kva To 1000kva , Cummins Engine 0
