Standby Power Genset 250KVA Emergency Diesel Generator With Meccalte Atlernator

Place of Origin Wuxi, China
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE
Model Number PF-DS275
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details POLY WOODEN CASE
Delivery Time 25 DAYS
Supply Ability 500/SETS/ MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 250KVA /200 KW Standby Power 275KVA/ 220KW
Engine Original Korea Doosan Diesel Motor Alternator Orginal Stamford / MECC ALTE
Controler Panel DeepSea 3110 / DeepSea 6020 /Smartgen Warranty 1 Year Or 1000 Hours
Certificate ISO/CE/ CIQ/PVOC
High Light

emergency diesel generator

,

silent diesel generator set

Leave a Message
Product Description


Diesel generator Doosan 200kw genset Specification:


Genset ModelPF-DS275
Prime Power200KW / 250KVA
Standby Power220KW / 275KVA
Phase Number3
Power Factor0.8
Rated Voltage230/400V
Frequency50 HZ
Rated Current100A
Genset StructureSILENT
Noise Level75 dBA@7m
Dimension3200X1120X1580MM
Net Weight1000KG
Engine ModelDoosan  / DP086LA
Engine Features6-cylinders,

Turbo

4 stroke,water cooled, direct injection
Bore * Stroke140*152
Displacement14L
12-hour Power(kw)250kw/1500
Fuel Consumption53L
Compression Ratio17.5:1
Starting ModeElectric Starter 24V
Fuel Tank Capacity90L
Alternator ModelSTAMFORD /UCDI274K
Rated Power200KW / 250KVA
Max Power220KW / 275KVA
Excitation Modebrushless self-excited
Insulation ClassH
Protection ClassIP23
Construction TypeSAE Disc-coupling
Controler panel
Smartgen 1780HGM1780 Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display.


Description:


1. Power Range:  150KVA - 825KVA

2. Engine: Original Korea Doosan

3. Alternator: Stamford / Mecc Alte

4. Controller: Deepsea or Smartgen

5. Type: Open type, super silent type, weatherproof type, Trailer type
6. Color: Red color

Applications:

1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.

Competitive Advantage:


1. Engine low fuel consumption.

2. All orignal engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–        frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.




Generators photos:

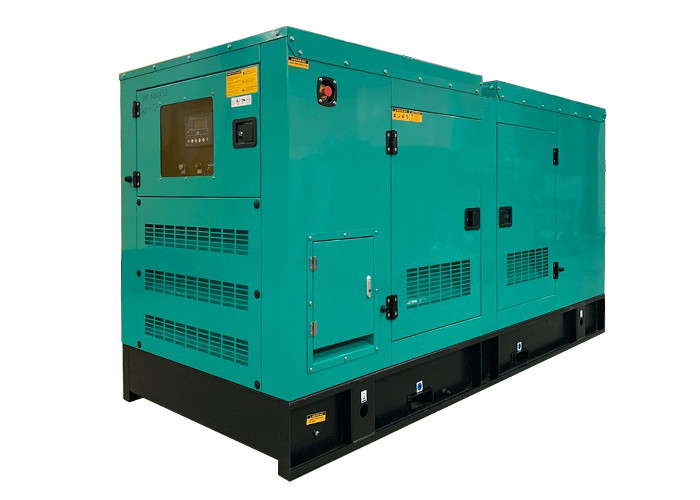

Standby Power Genset 250KVA Emergency Diesel Generator With Meccalte Atlernator 0
Standby Power Genset 250KVA Emergency Diesel Generator With Meccalte Atlernator 1
