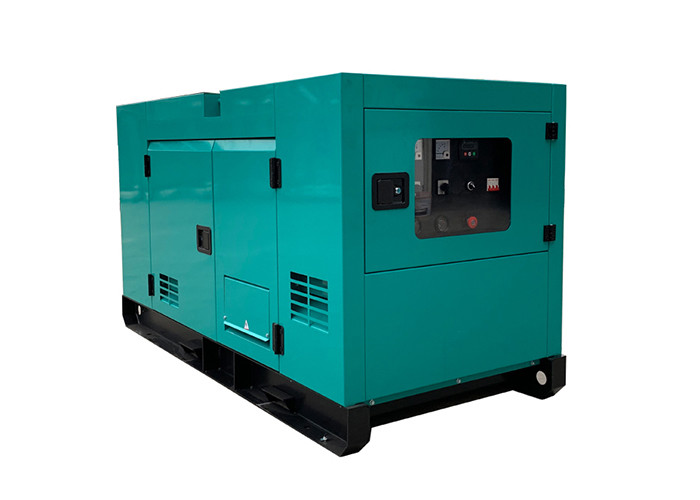

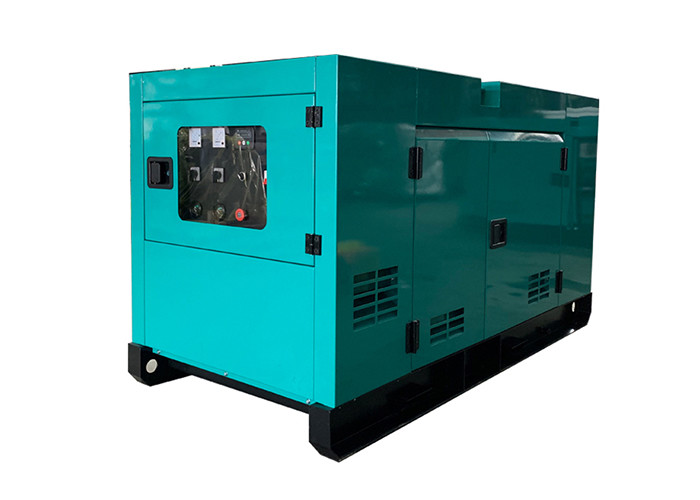

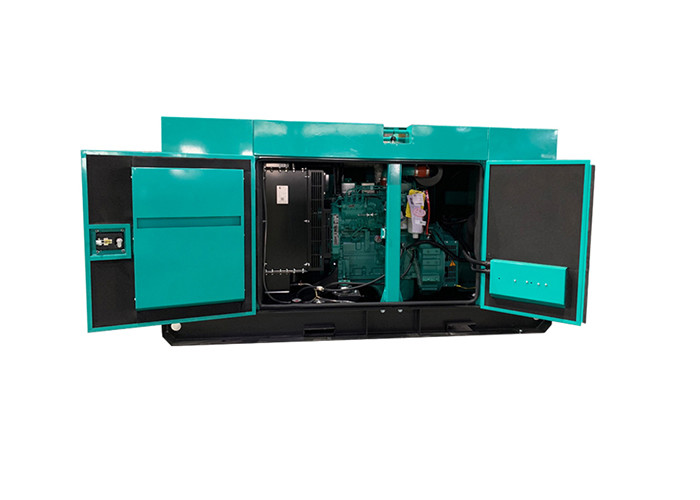

20kva Denyo Silent Diesel Generator FAWDE 16kw Silent Generator Set
Model Soundproof diesel generator set |
GP22FWS |
||
SET |
Rated power(Kw/kva) Prime power |
16KW/20KVA |
|
Frequency(Hz) |
50 |
||
Phase |
3 |
||
Voltage(V) |
380/220V |
||
Current(A) |
23 |
||
Fuel capacity(L) |
100 |
||
Fuel consumption(L/Hour) 100% Prime power |
4 |
||
Dimension (mm) |
L |
1880 |
|
W |
800 |
||
H |
1080 |
||
Weight(kg) |
770 |
||
Noice level for silent type (Db/7m) |
56 |
||
ENGINE |
Model |
4DW91-29D |
|
Prime power(kw/kva) |
16/20 |
||
Cylinders |
4 |
||
Bore×stroke(mm) |
93×102 |
||
Intake Method |
Natural intake |
||
Displacement(L) |
2.771 |
||
Speed governing |
Mechanical governor |
||
Cooling starting method |
Water cooling |
||
ALTERNATOR |
Model |
UP184E |
|
Rated power(kw/kva) |
12/15 |
||
Insulation class |
H |
||
Alternator enclosure |
IP23 |
||
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. |
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
