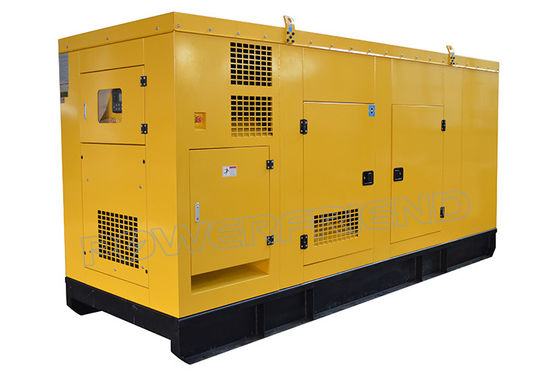

Korea Doosan Engine 360KW 450KVA Electric Soundproof Generator Diesel
Product Description
Korea engine doosan genset standby power 500kva generator
1. SPECIFICATIONS OF GEN-SET | ||
1.1 | Set Model | GP-DS500 |
1.2 | Prime at 50HZ, 40℃ ambient | 360KW 450KVA |
1.3 | Standby at 50HZ, 40℃ ambient | 400KW 500KVA |
1.4 | Rated Gen-set output | 230/400V 50Hz |
1.5 | Rated Relative humidity | ≤ 60 % |
1.6 | Dimension (L×W×H) | 3900×1400×2150mm |
1.7 | Weight | 3900kg |
1.8 | Fuel consumption 100% prime load | 64.7L/h |
1.9 | Total heat radiated to ambient | 70KW |
1.10 | Noise Level at 7m (Normal/Super) | 80dB |
1.11 | Structure of Gen-set |
The Gen-set adopt integrative structure, |
1.12 | Control system (Optional) |
Basic control panel or Advanced control |
2. SPECIFICATIONS OF ENGINE | ||
2.1 | Engine Brand | KOREA ENGINE DOOSAN |
2.2 | Engine Model | DP158LC |
2.3 | Governor/Class | Electrical |
2.4 | Cylinder NO. | 6 |
2.5 | Engine build | Line |
2.6 | Fuel spray pattern | PT direct injection |
2.7 | start-up method | 24V, electric |
2.8 | Aspiration | Turbocharged/Aftercooled |
2.9 | Cooling mode | Radiator cooled (enclose water) |
2.10 | Bore and stroke | 159×159 mm |
2.11 | Compression ratio | 14.5:1 |
2.12 | Displacement | 19L |
2.13 | Engine Prime Power at 1500rpm | 448KWm |
2.14 | Engine Standby Power at 1500rpm | 504KWm |
2.15 | Battery capacity | 127A/hr |
2.16 | Starting/Min temperature | 7℃ |
2.17 | Lubrication oil capacity | 38.6L |
2.18 | Coolant capacity - radiator and engine (40℃) | 70L |
2.19 | Exhaust temp - full load prime | 512℃ |
2.20 | Exhaust gas flow - full load prime | 3723m3/h |
2.21 | Exhaust gas back pressure max | 76mmHg |
2.22 | Air flow - radiator (40℃ ambient) | 7.2 m 3/s |
2.23 | Pusher fan head (duct allowance) 40℃ | 13mmH 2O |
2.24 | Air intake - engine- full load prime | 1428m3/h |
2.25 | Standard Air intake temp | 25℃ |
2.26 | Fuel type | #0 Diesel (Natural temperature) |
2.27 | Filter system |
Adopt whole changeable lubricating |
2.28 | Exhaust system |
Adopt industrial high efficiency muffler |
3. SPECIFICATIONS OF ALTENATOR | ||
3.1 | Alternator Model | Stamford / HCI544C |
3.2 | Alternator Type | A.C. Synchronous |
3.3 | Rated Voltage | 230/400V |
3.4 | Rated Frequency | 50HZ |
3.5 | Rated speed | 1500 RPM |
3.6 | Voltage regulation mode | Auto |
3.7 | Alternator voltage regulation | ±0.5% |
3.8 | Exciting mode | Brushless self exciting |
3.9 | Power factor | 0.8 (lagging) |
3.10 | Phase & wires | 3 phase 12 wires |
3.11 | Rated currency | 505.2A |
3.12 | Efficiency | 0.935 |
3.13 | Insulation class | H |
3.14 | Protection class | IP23 |
3.15 | Single load step to NFPA110 | 100% |
3.16 | Standards | IEC34-1 |
3.17 | Max. Ambient Temperature | 40℃ |
3.18 | Min. Ambient Temperature | - 20℃ |
3.19 | Max. altitude | 1000m |
3.20 | Weight | 995.5kg |
Control Panel
Factory Environment
Description:
Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.
Applications:
Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.
Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.
Transation Process:
1. Buyer place order after confirming the details.
2. Seller issue the Proforma Invoice.
3. Buyer pay the advance payment base on the bank details on PI.
4. Seller arrange production immediately after receiving the advance payment.
5. Seller send photos of the products and videos of testing to Buyer.
6. Buyer pay the balance payment after checking the photos and videos.
5. Seller arrange the shipment base on Fob/CNF/CIF/DDU, and send photos of packing and shipping.
